Wind rose
The wind rose visualisation element is used to visualise the wind direction, issued as 1 byte or 2 byte telegram.
CONTROL L support
The element can also be used in CONTROL L.
Specific parameters
A KNX group address is used for this visualisation element. In addition, two data point types are available for specifying the direction.

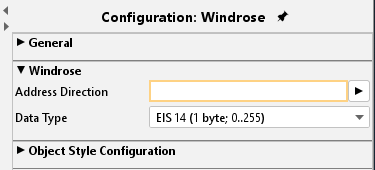

Direction address
Communication object. Enter the desired group addresses here. Data type EIS 14 (1 byte) or EIS 10 (2 byte).
Data type
Select the correct data type:
EIS 14 = 1 byte, range of values 0-255
EIS 10 = 2 byte, range of values 0-360
Object style configuration
All other options are described in chapter General Element Parameter.
Visualisation element - wind rose
