Job Editor Classic Window

Job Editor will be open with browsing “Window” > “Job editor Classic”. The window doesn`t appear in full screen mode and with the help of the edge right below you can minimize, maximize or close it.

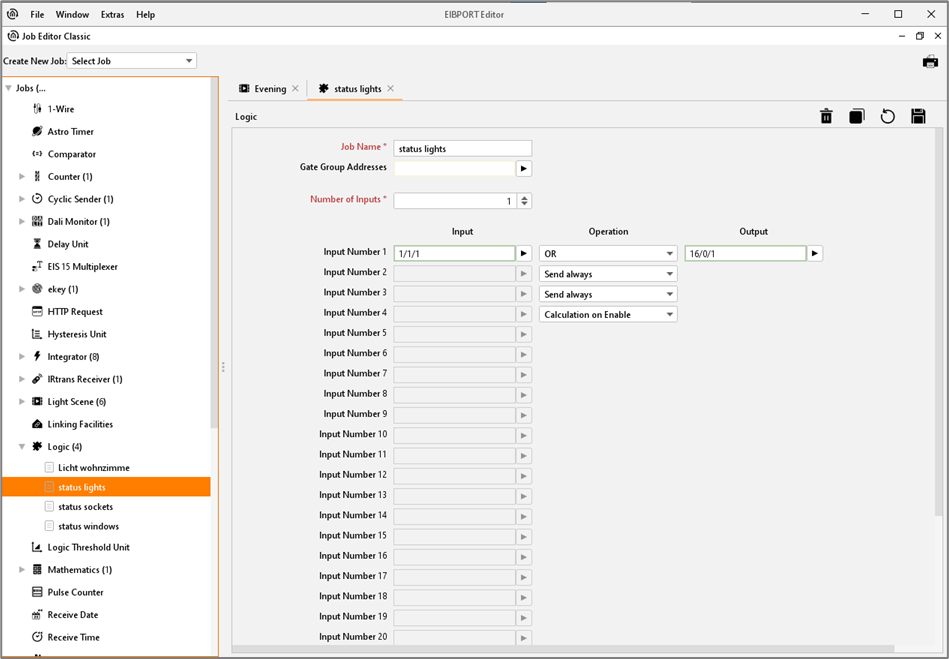

In the Job Editor, the tasks (jobs) of EIBPORT will be configured. Offered types of job diversify in version of EIBPORT `s firmware. To create the jobs, you will find a symbol bar and a tree structure. The job mask used for configuration is shown in the middle of your screen.

To select the jobs (services), there is a selection menu on the left-hand side.

New Job

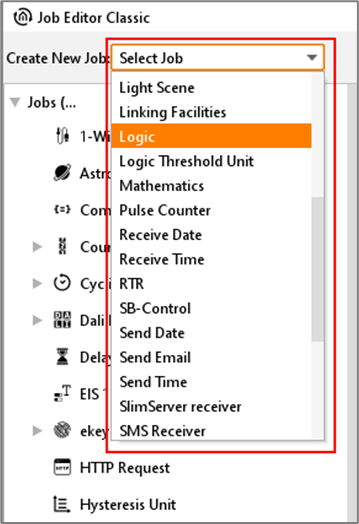

A new job is opened by right-clicking on the desired job type. In addition, new jobs can also be selected and created via a pull-down menu.

Docu

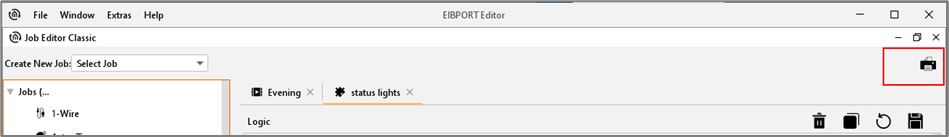

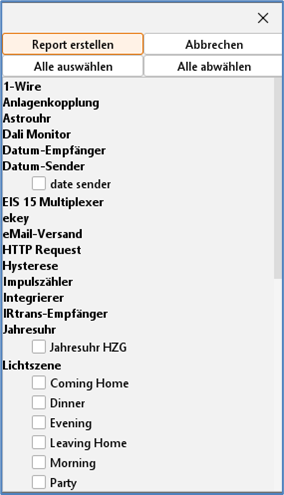

The icon with the inscription "Docu" is used to document the configuration of the jobs. The function can also be accessed by right-clicking on the "Jobs" parent folder. A new dialog opens in which the existing jobs can be selected for documentation. This can either be done manually, individually for each job, or for all jobs using the "Select All" option.

Click on ‘Create report’ to generate an html page that summarises the configuration of all selected jobs. This file can be printed (Print) and archived.

Tree structure

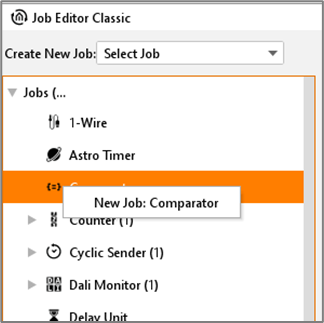

The alphabetically sorted tree structure encompassing all available job types and jobs is shown on the left side of the Job Editor window. Each job type is displayed as a folder which can be opened or closed via a small arrow if there are specific jobs for the corresponding job types. Whether there are any specific jobs for a job type and, if so, how many, is shown in brackets after the description of the job type. Each job is shown as one page. If several jobs have been defined, they are automatically sorted in alphabetical order. New jobs can be created by right-clicking on the job folder. The corresponding job mask appears in the centre of the window.

Saving, copying and deleting jobs

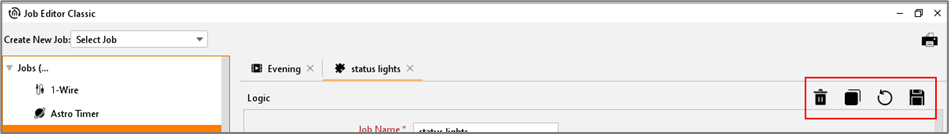

A Job will be managed by the job window. In the right edge above of every job input mask, you can find symbols for deleting, copying, saving or closing of jobs. Copying a job happens without duplicating the job name. By clicking on “Delete Job”, selected job will be deleted without any previous security query.
