Collective Signal Acknowledgement
Is a visualization element to submit acknowledgements to a LOGIKEDITOR Collective Signal logic element.
CONTROL L support
This element is intended exclusively for the CONTROL L visualization.
Specific parameter:
In addition to the general element parameters, there are element-specific parameters. These determine on which group addresses the required values are sent.

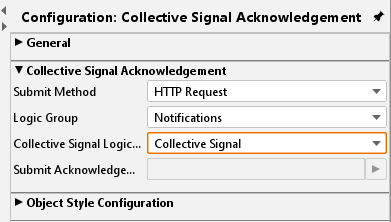

Submit Method
Select here the method of how an acknowledgement is a submitted:
HTTP request: Submit acknowledgements via HTTP request. The availability of this option depends on the settings of your Collective Signal logic element.
Telegram: Submit acknowledgements via telegram. Choose this option if you want to submit acknowledgements to your Collective Signal logic elements via data point.
Collective Signal Acknowledgement
Logic Group
Select the logic group containing your Collective Signal logic element.
Collective Signal Logic Element
Select the Collective Signal logic element you want to submit acknowledgements to.
Submit Acknowledgement (EIS1)
Sends a “1” of this group address if submit method “Telegram” is selected.
Object style configuration
All other options are described in chapter General Element Parameter.
