Blinds and status indicator
The blinds and status indicator serves as a control element for blinds. Specific positions can be driven and the tilt angle is displayed.
CONTROL L support
The element can also be used for CONTROL L.
Specific parameters:
Objects
The element provides different objects. Not all of them have to be used.
Up / Down:
EIS 1 Object as ‘Move command.
Position:
EIS 6 Object to drive and display a specific blind’s position directly
The scaling within the element is controlled dynamically. If parameter “aspect ratio” is deactivated the scaling will become more precise.
Ribs:
EIS 1 Object for blinds “Step” command.
Wind control:
EIS 1 object for wind control. If a telegram is sent on this object, the operation elements turn to red and cannot be used any more.
Angle:
EIS 6 Object for controlling and displaying the angle of the ribs.

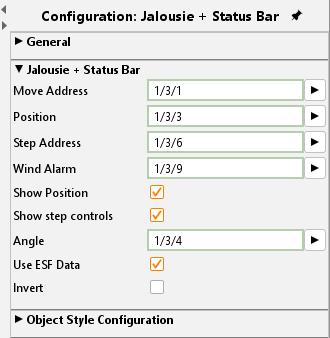

Settings
The element provides some more options:
Show Step:
“active” as default setting. Assigns if an operational element for the step command is displayed within the element or not.
Use ESF data:
if this flag is activated ESF data (out of the ETS) are used as tooltip resp. mouse-over-help.
Invert:
For use in some special controls, it is necessary to invert EIS 1 objects
Object style configuration
All other options are described in chapter General Element Parameter.
