LOGIK EDITOR

The LOGIKEDITOR is available from EIBPORT firmware version 3.5.0.

The LOGIKEDITOR is a web-based application for graphically creating logic functions and automation tasks. It complements the classic Job Editor and can be used in parallel with it.

Existing jobs created with the classic Job Editor are retained and can continue to be edited there.

Starting the LOGIKEDITOR

The LOGIKEDITOR is launched from the EIBPORT start page.

Open the EIBPORT web interface in a supported browser, log in using your user credentials, and then select the LOGIKEDITOR.

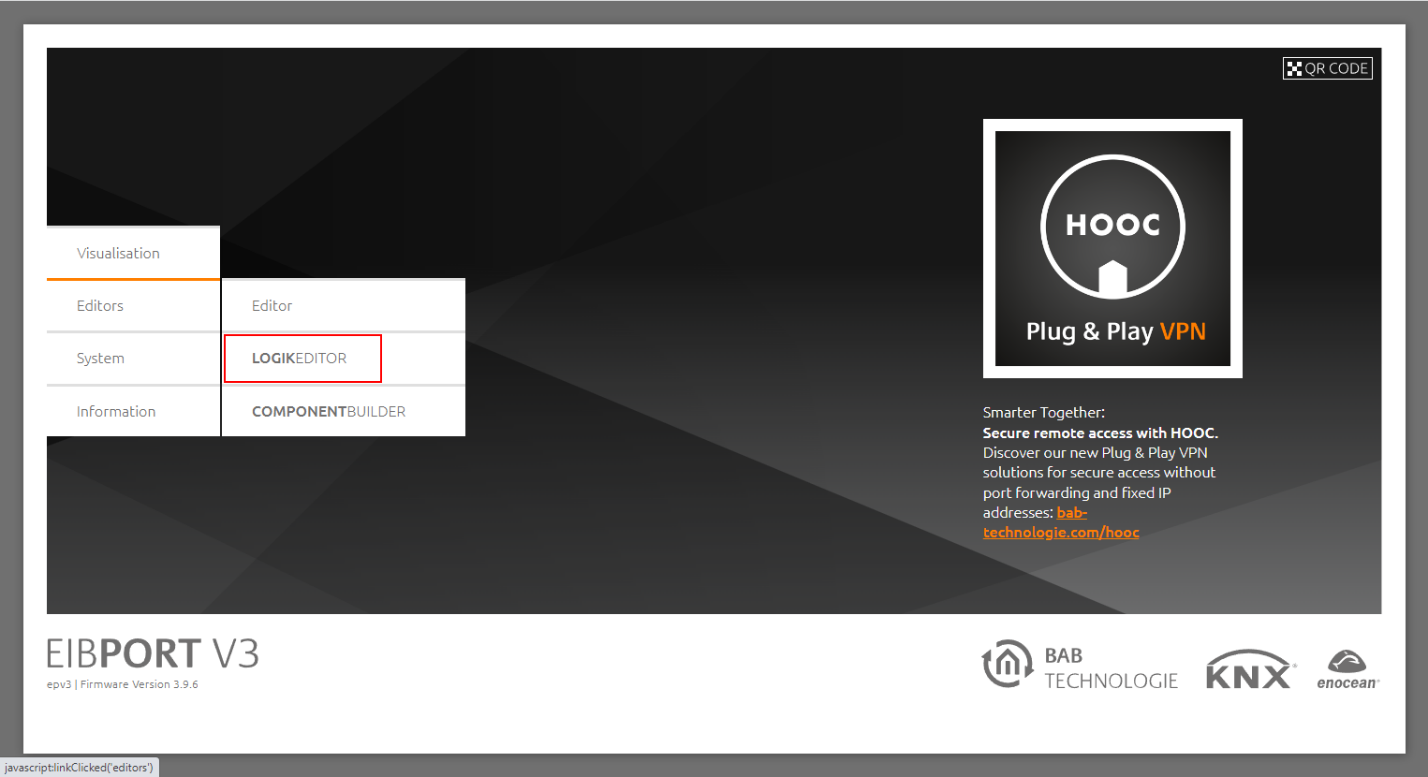

EIBPORT start page – LOGIK EDITOR

Alternatively, the LOGIKEDITOR can be opened via the BAB STARTER.

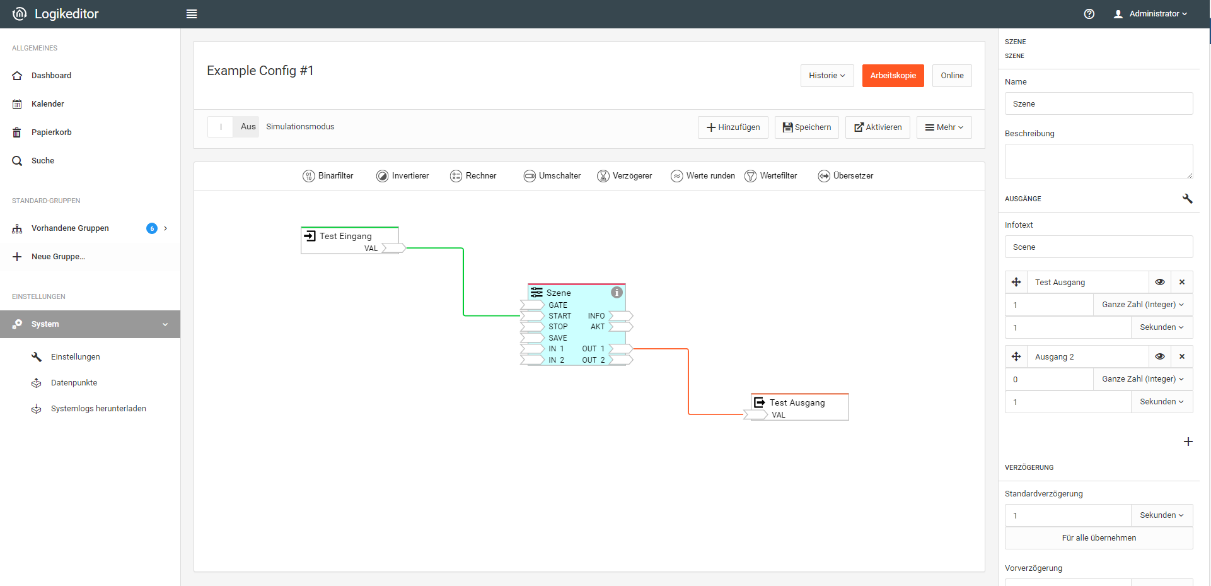

Logic groups in LOGIK EDITOR

Note

Operation and configuration of the LOGIKEDITOR are described in separate documentation.

The LOGIKEDITOR documentation includes information on:

  • logic groups

  • data points and interfaces

  • logic elements

  • simulation and activation

  • KNX, REST, Modbus TCP, and MQTT data points

For all further information, refer to the separate LOGIKEDITOR documentation.


Go to the LOGIKEDITOR Documentation

https://doc.bab-technologie.com/leen


///
