Scene

The scene sends pre-defined values in individual intervals on the outputs (OUTx).

Contents

Inputs and outputs

Inputs

• GATE (see Logic Elements | Datapoint-Gate)

• START
  Starts the scene. Any values are accepted.

• STOP
  Immediately stops the scene. Depending on the setting, the logic element is reset or starts from the point it was stopped during the next start.

• SAVE
  Saves the values present at INx in order to send these when executed at the corresponding output OUTx.
  Important: Only values will be accepted that can be processed by the set data type of the output.

• INx
  see above

Outputs

• INFO
  A configurable information text is sent when the scene is started.

• AKT
  Sends the name of the current output as soon as it was triggered.

• OUTx
  Sends the default values.

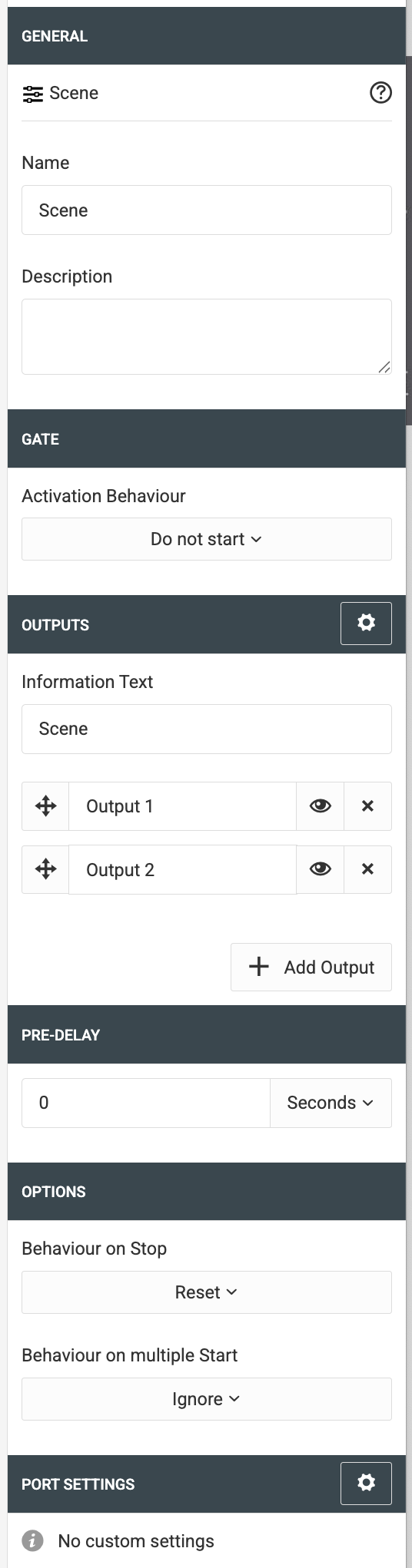

Configuration

Information Text

The information text is sent to INFO when the scene is triggered.

Outputs

The scene supports as much as 20 outputs.

•

  You may relocate each output using Drag & Drop and your mouse.

• Each output may have an individual name. If you do not specify a name, the system tries to find the name of the linked output and this name will be sent.

•
  Each output may be disabled individually and will be ignored when the scene is triggered.

•
  You may remove each output individually.

Pre-Delay

The pre-delay is the period of time waited prior to triggering the sending of the first output.

Options

 Behavior on Stop

• Pause
  If a stop signal is sent, the scene is paused. During the next start, the process is continued from this point.

• Reset
  The scene will start from the beginning during the next start.

Behavior on multiple Start

• Ignore
  Start signals are ignored as long as the scene is running.

• Restart
  The scene is restarted immediately and starts from the beginning.

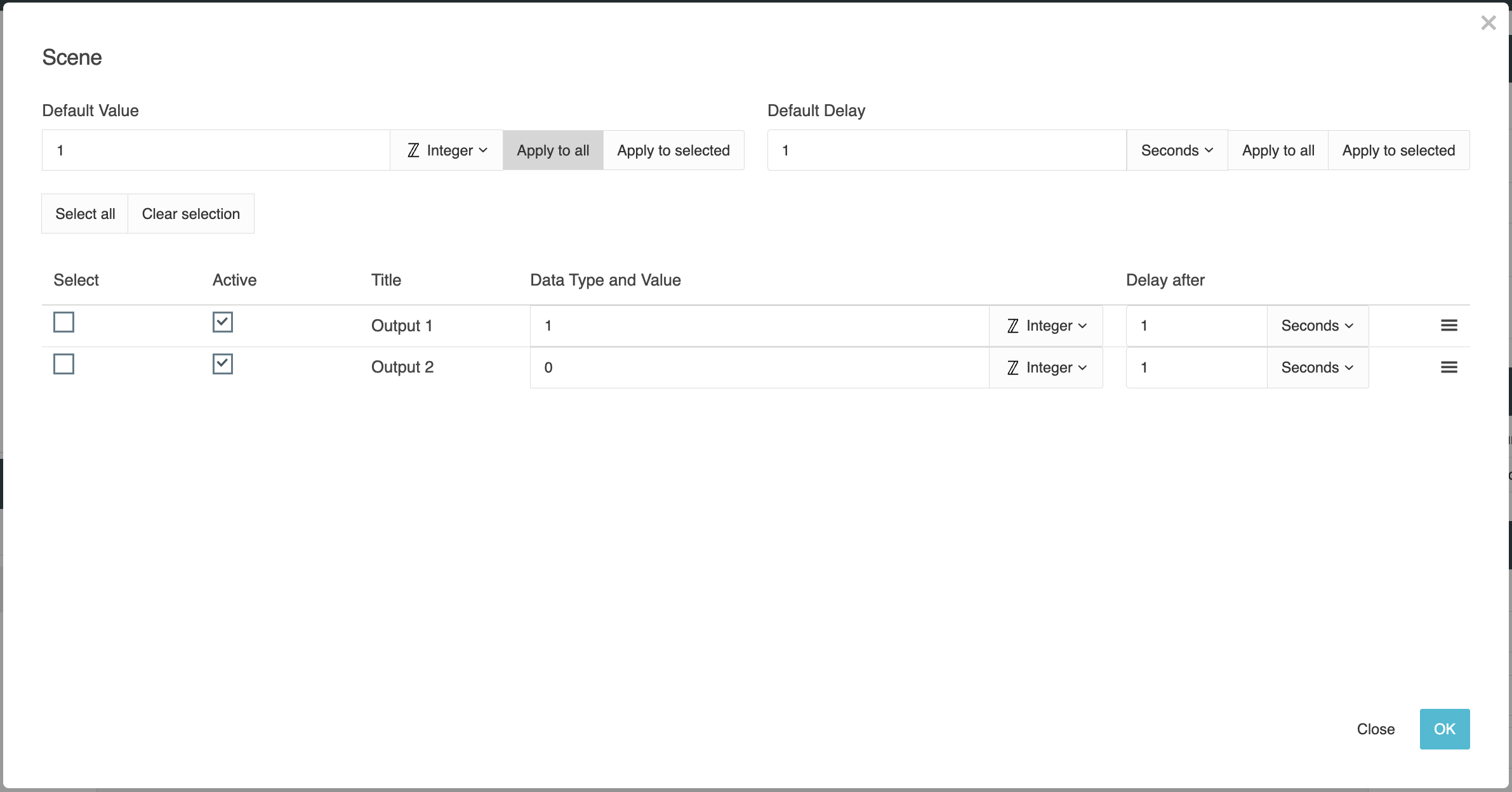

Advanced Configuration

Here, you define the individual output value and delay for each output.

Default Value

Use this option to apply an identical value to all or selected outputs. All rows that have their checkbox (1. column) checked count as selected.

Default Delay

Use this option to apply an identical delay to all or selected outputs. All rows that have their checkbox (1. column) checked count as selected.

Row Entry

Select

Select for bulk apply of default value and default delay.

Active

If the output is not set as active, it will be skipped when the scene is running.

Title

The title is configured in the basic configuration. It will be sent to the AKT output when the scene reaches this output.

Data Type and Value

Define the data type and value to be sent by the scene on this output.

Delay after

The delay is always applied after this value has been sent. Should you desire a delay before the first output value is sent, please use the pre-delay option in the basic configuration.

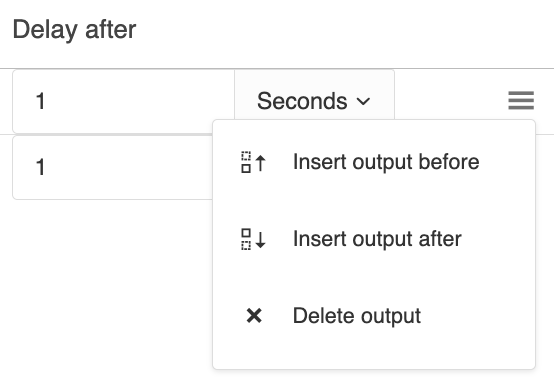

Burger Menu

Click the button with the three horizontal lines to insert or delete outputs.

///
