Licence upload

In order that CONTROL R can be used unrestrictedly, a licence will be necessary. CONTROL R acts as controller of greater objects, like schools or hotel plants (see chapter “Room”). . For CONTROL S there is no licence needed anymore. It is obsolete since firmware version 0.11.5 (EIBPORT hardware 2.1).

The CONTROL R could be applied, but without a licence it will not be able to generate data. Licence file (*.dat) has to be uploaded to EIBPORT at this place.

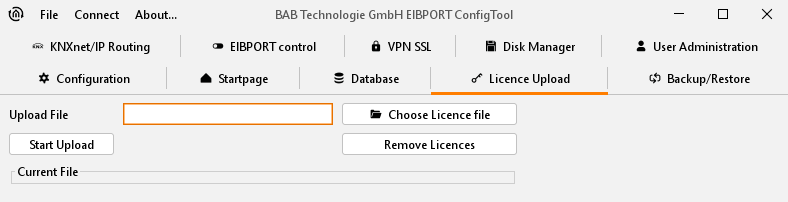

Licence data will be chosen by using the file-browser opening with “Choose Licencefile“. And will be uploaded by using the button „Start Upload“. Under it, display array of the licence information is located.

Under „licences“ type of licence is shown. Following types exists:

• HIC J2ME visualisation:
  For display on PDA with own Java installation (Java 2 mobile edition)

• HIC Ajax (Web-) Visualisation:
  For display on windows media centre edition PC

• HIC iPhone Visualisiation:
  For display on iPhone/iPod or other current mobiles (with Java script) ).

• Room Allocation Plan:
  For enabling the CONTROL R module to generate the switching data out of the projected data.

Note: The types of licenses for the CONTROL S since the firmware version 0.11.5 is no longer needed because the CONTROL S has since been released from the outset. It does not matter but if the licenses are still available in older versions.
