CONTROL S - Visualisation
CONTROL S (formerly HIC) is also a visualisation, which doesn`t need Java supporting. Structure of this visualisation is built up consciously simple and clearly, to consider the needs of mobile units with small displays. Since the firmware version 0.11.5 (hardware version 2.1), it is also not necessary to unlock the CONTROL S by a license, the CONTROL S is activated from the outset.

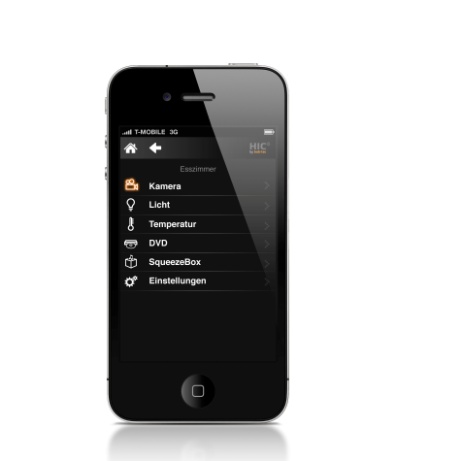

Control S with iPhone
Supported DEVICES
The CONTROL S supports all common device types for JavaScript-compatible browsers. In previous versions of the firmware EIBPORT device types were divided into three different types of licenses. This is no longer necessary since the firmware 1.0.1, there are now supporting all popular mobile browser. This includes devices like the iPhone with iOS or Samsung Android operating system but also Nokia devices with Symbian OS, BlackBerry, or HTC.
Important information
Authentication
The user authentication for CONTROL S is managed in the "security settings" of the Visualisation Editor. (See chapter “Password protection for visualisation”). Access to CONTROL S can be enabled individually for each user in the user details.
Simultaneous connections
The simultaneous connections of CONTROL S are determined by the following general conditions:
Number of visualisation elements on one page
Number of telegrams per second
Number of jobs to be executed.
Number of network-based services to be executed.
The higher the number of the conditions listed above, the less resources the EIBPORT can allocate to the connection requests of the different CONTROL S visualisation clients.
