CONTROL L visualisation
CONTROL L is a web-based, customizable visualisation which is generated based on the configuration in the editor.

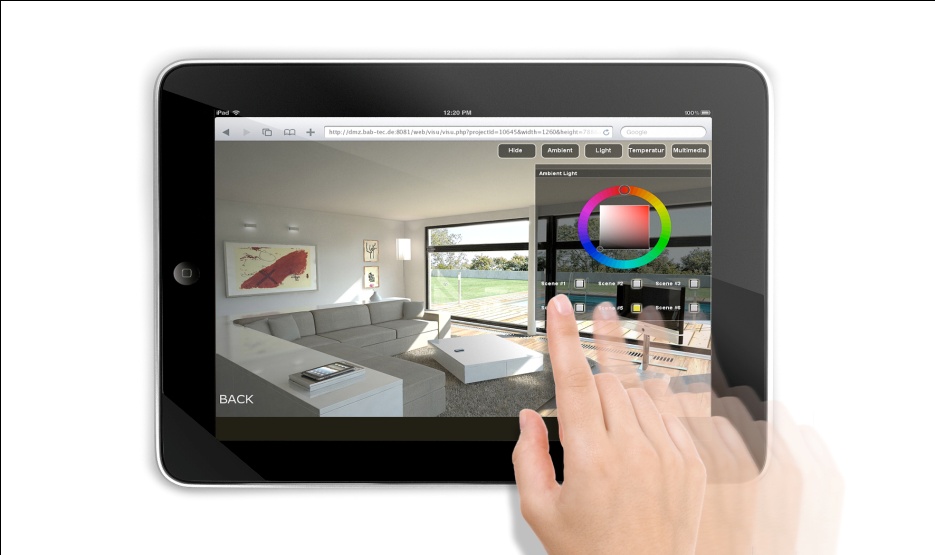

Apple iPad with CONTROL L
Requirements
Since CONTROL L uses the latest web technologies such as HTML 5 and CSS, an up-to-date browser suited to your operating system must be used:
Operating system | Web browser |
|---|---|
Microsoft | Google Chrome, Mozilla Firefox, |
macOS: | Apple Safari |
Linux: | Google Chrome |
Android: | Google Chrome |
iOS: | Apple Safari |
CONTROL L uses the same user login as the Java visualisation.
Important information
What elements are supported in CONTROL L?
With respect to the visualisation elements, there are differences as to what functions are shown in the JAVA CONTROL (Java-based) and CONTROL L (web-based) visualisation. Please refer to the corresponding display in the editor to see which elements can be used for CONTROL L.
Establishing a connection / Simultaneous connections
The simultaneous connections of the CONTROL L visualisation are determined by the following general conditions:
Number of visualisation elements on one page
Number of telegrams per second
Number of jobs to be executed.
Number of network-based services to be executed.
The higher the number of the conditions listed above, the less resources the EIBPORT can allocate to the connection requests of the different CONTROL L visualisation clients. During average use, the EIBPORT can serve 10 to 20 CONTROL L clients simultaneously.
iOS devices: "Add to home screen" function
On iOS devices, the CONTROL L visualisation can be easily used in a similar way to an app. For this purpose, a direct link is provided on the home screen of the device and the visualisation is started without browser address line.

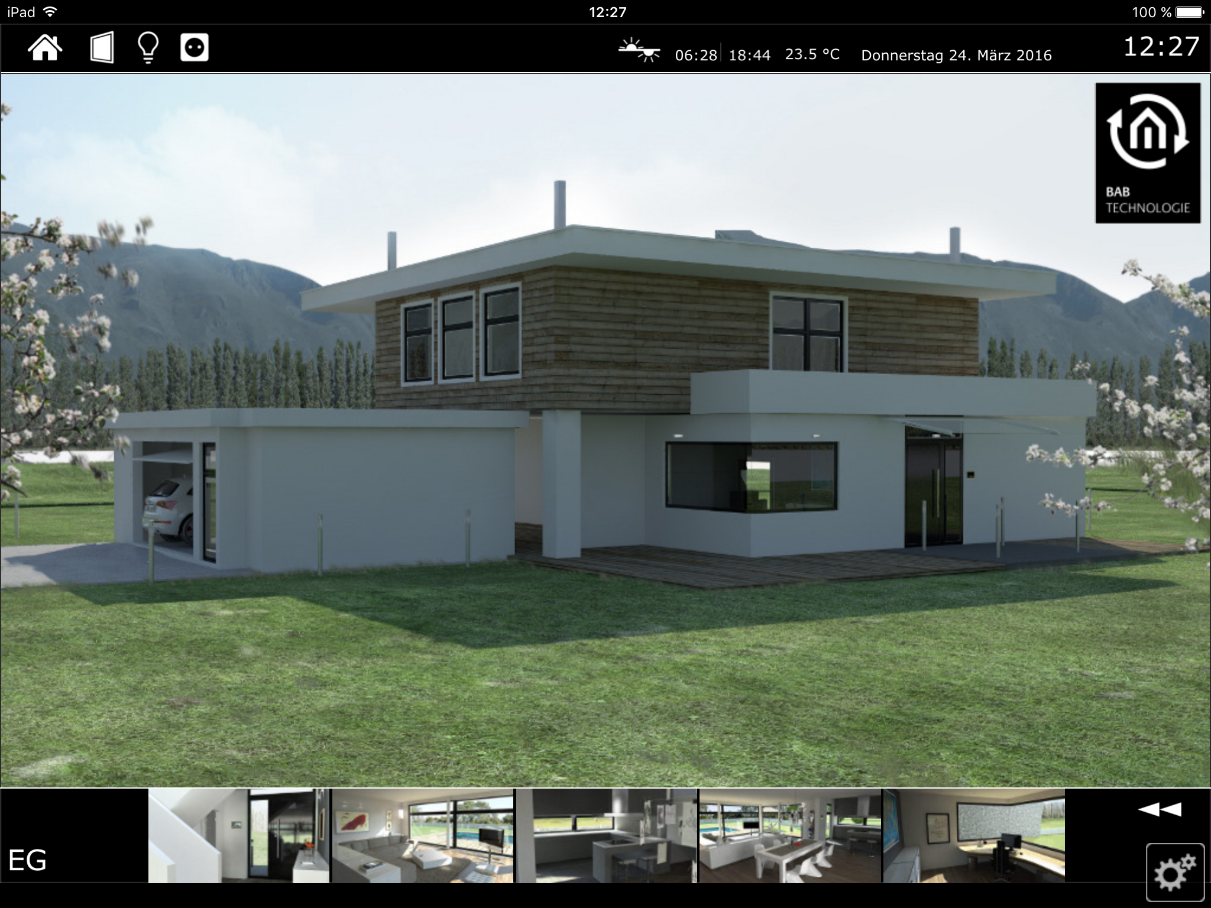

CONTROL L - started using the iOS home screen link
To generate the link on the home screen, follow these steps:
Call up the desired EIBPORT visualisation in the Safari browser.
Log into the visualisation so that the start page of the visualisation is shown.
Then, click on the link icon to the right of the browser's address line.

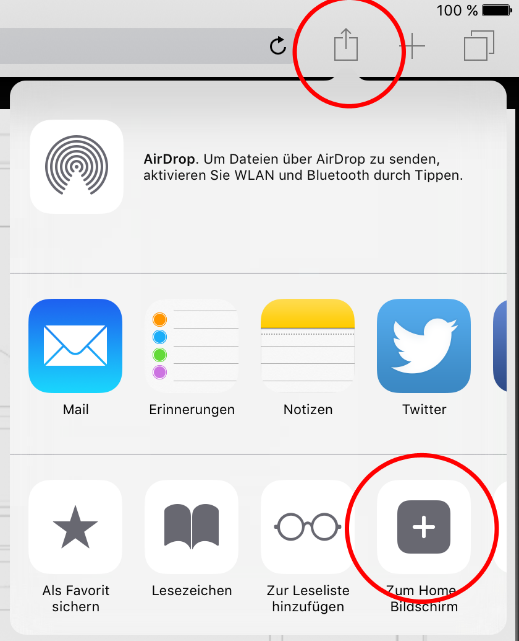

iOS – adding home screen
Subsequently, a link is generated on the home screen. Before adding the link, you can give it an individual name.
iOS – home screen icon
Android devices: add to start screen
On Android devices, you can link the opening of a CONTROL L visualisation project directly on the start screen of your system with the help of a symbol using the “Add to start screen” function in the Chrome browser.
To do this, please proceed as described below:
Call up the desired visualisation in Chrome. To this end, browse to the start page for the visualisation so that you have already logged in.
Then click on the Chrome settings menu.

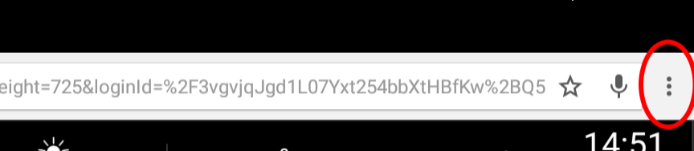

Google Chrome settings menu
Click on “Add to start screen”.

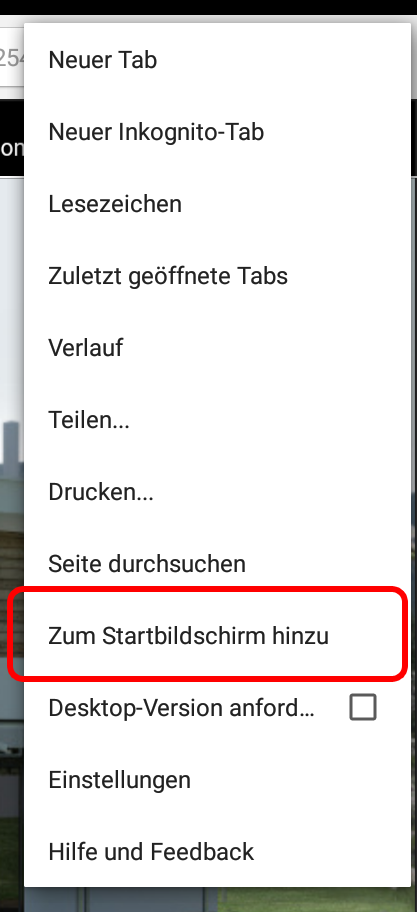

“Add to start screen” option
You have the option of giving the link a name.

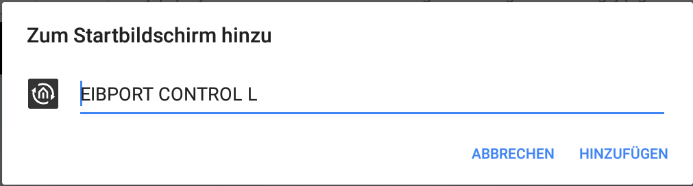

Name for start screen link
The link is placed on the start screen.
Android start screen link
