KNXnet/IP Tunneling provides direct KNXnet/IP access to the LOGIKMODULE.
Such a connection can, for example, be used to access the KNX installation with ETS.
The LOGIKMODULE operates as a KNXnet/IP tunneling server.
Communication is established via a unicast connection using UDP port 3671.
KNXnet/IP Tunneling Address

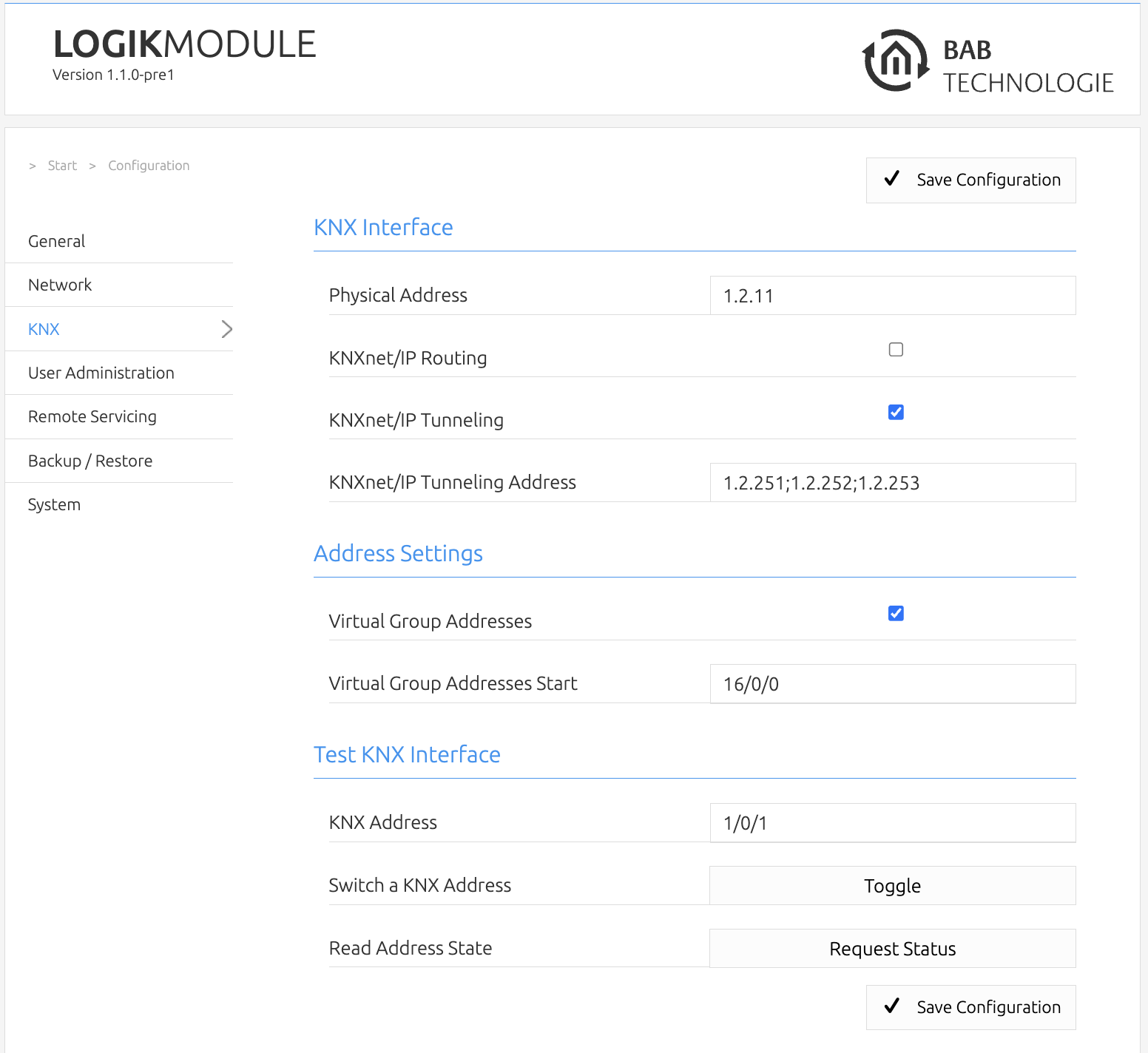

After enabling KNXnet/IP Tunneling, the settings for the tunneling addresses are displayed.
A separate physical KNX address is used for each tunneling connection.
The tunneling addresses can, for example, be used when operating the LOGIKMODULE as a KNXnet/IP interface for ETS.
After completing the configuration, click Save Configuration.
Note
A tunneling address must neither be identical to the physical address of the LOGIKMODULE nor already be used by another KNX participant in the line.
In addition, an address matching the address structure of an area coupler or line coupler must not be used for a tunneling connection.
The following address structures are therefore not permitted:
-
Area coupler:
x.0.0 -
Line coupler:
x.y.0
Use only free physical device addresses within the respective line for tunneling connections.
///
