Regardless of the respective KNX connection, both the LOGIKMODULE IP and the LOGIKMODULE KNX provide KNXnet/IP router functionality.
Both variants support KNXnet/IP Routing and KNXnet/IP Tunneling and can be used as a programming interface for ETS.
KNX Long Frames are also supported.
Enabling KNXnet/IP Routing and Tunneling

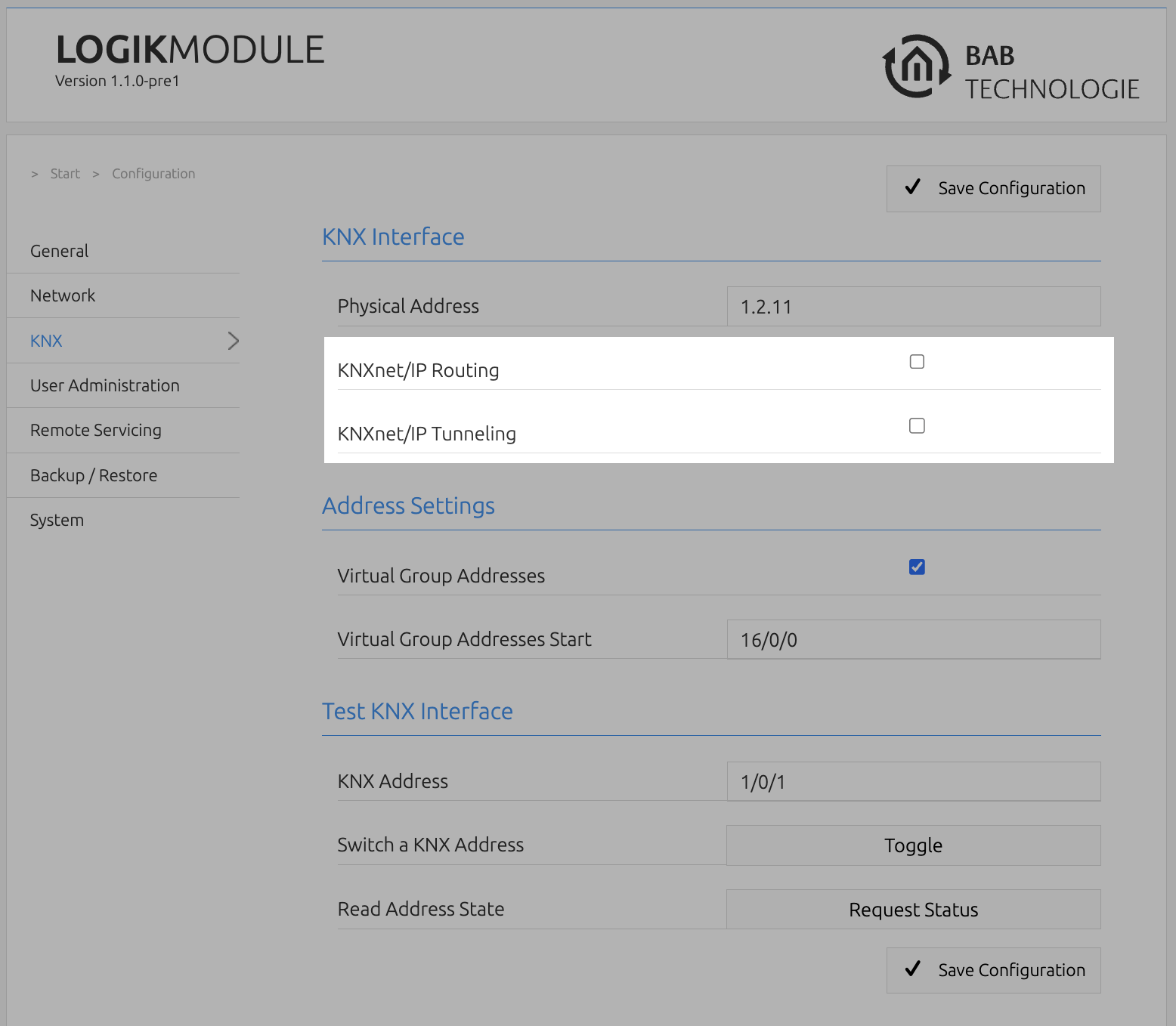

In the KNX Interface section, the KNXnet/IP Routing and KNXnet/IP Tunneling functions can be enabled or disabled independently.
To do this, select the corresponding checkbox:
-
KNXnet/IP Routing – enables KNX communication via KNXnet/IP Routing.
-
KNXnet/IP Tunneling – enables KNXnet/IP tunneling access, for example to use the LOGIKMODULE as a programming interface for ETS.
Both functions can also be enabled at the same time if required.
Depending on the selected option, the web interface automatically displays the corresponding configuration parameters. If a function is disabled again, the associated settings are hidden.
Note
Changes are applied only after clicking Save Configuration.
///
