To call up the CUBEVISION Editor, please observe the information provided in chapter "CUBEVISION Editor"
The "File" menu
Localisation
In future, the localisation menu is to provide the option of adjusting the software language.

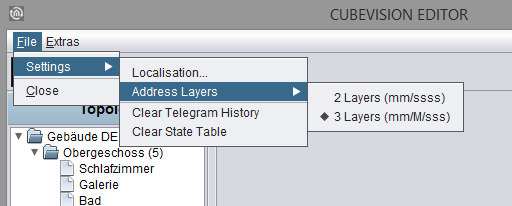

Address layers
In the editor, group addresses are displayed in two layers (mm/ssss) or three layers (mm/M/sss). Available group addresses are converted in the visualization editor if necessary.

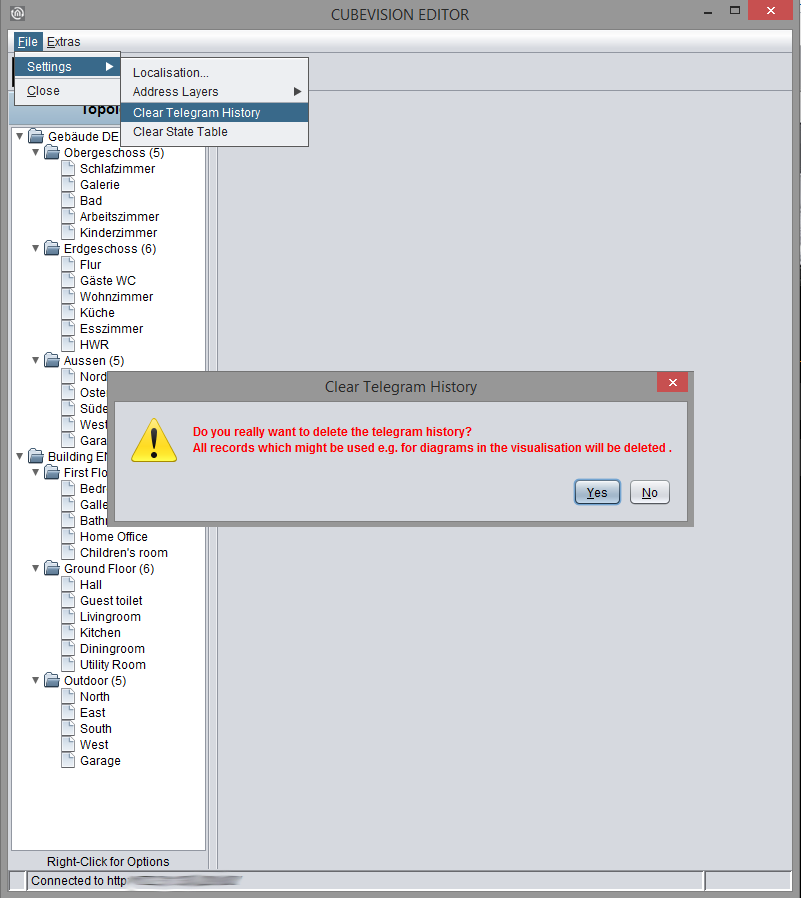

Erasing history table
The CUBEVISIONMODULE stores 500,000 messages. These lie in a SQLite database and can be used by the graph in the visualization. The last 20,000 telegrams simultaneously in the operating system itself deposit to you as with external programs to read. With this function, this record is deleted immediately, which are preserved 500 000 telegrams in the SQLite database.

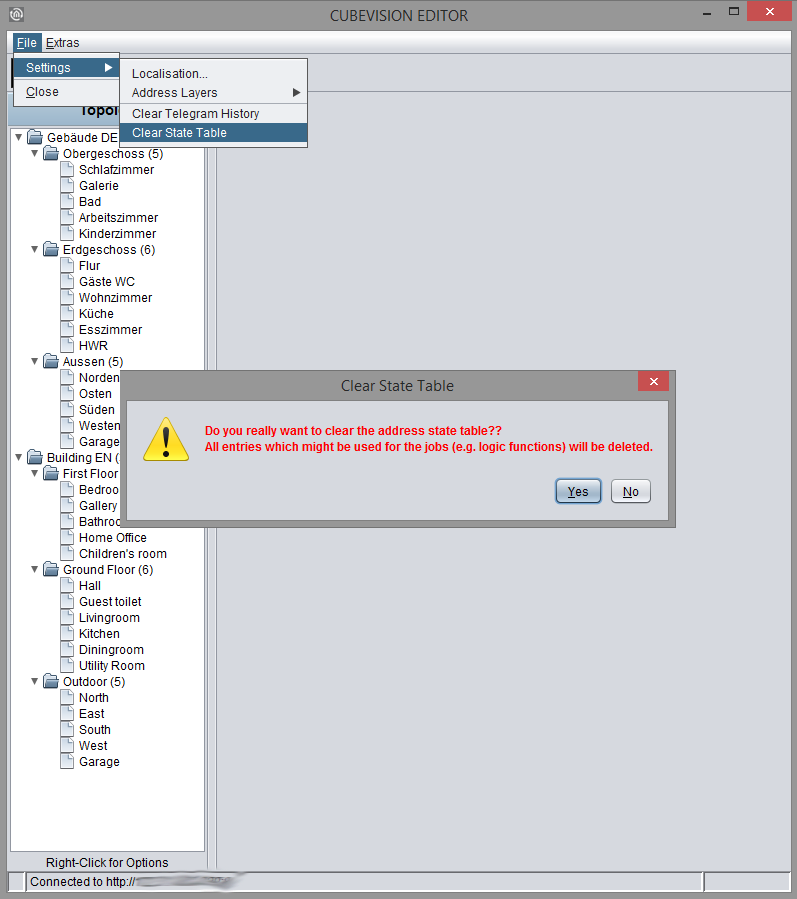

Erasing state-table
This table stores the state of all given group addresses. These entries will control working of visualization and jobs. The last condition is determined with the aid of the telegram’s time signature. The state table can be erased without rebooting.
///
