Appendix

Icons for controls

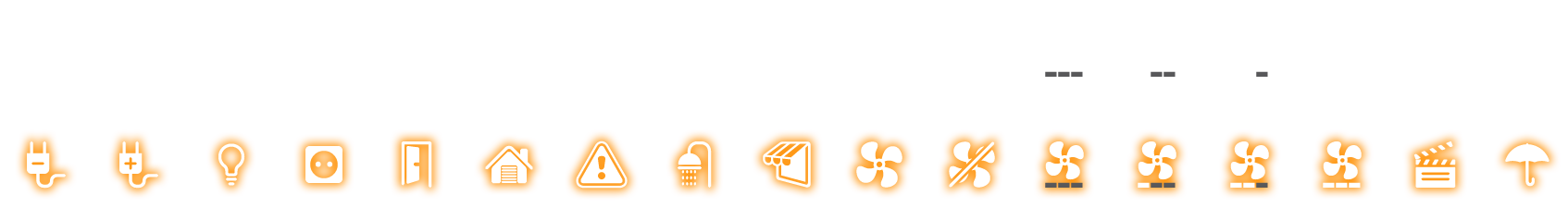

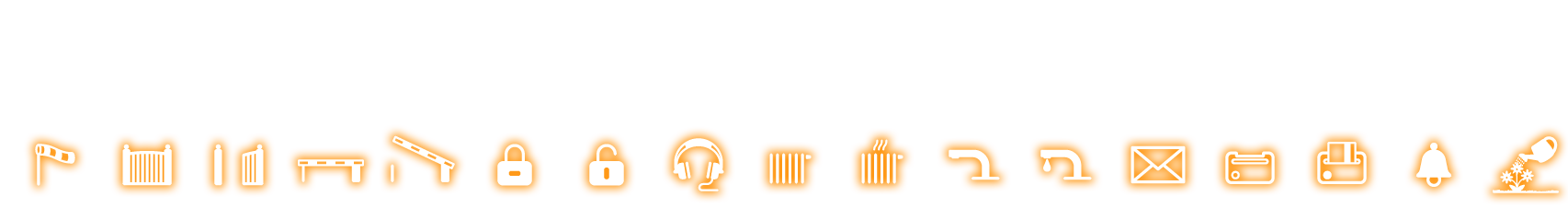

In the following figure, all 34 icons of controls are displayed:


For following function, icons are available, each for active and inactive (sequence from left to right):

  1. "Central ON",

  2. "Central OFF",

  3. "Lighting",

  4. "Socket",

  5. "Door",

  6. "Garage",

  7. "Caution",

  8. "Bath taken",

  9. "Sunblind",

  10. "Fan On",

  11. "Fan off",

  12. "Fan level 0",

  13. "Fan level 1",

  14. "Fan level 2",

  15. "Fan level 3",

  16. "Scene",

  17. "Rain",

  18. "Wind",

  19. "Door open",

  20. "Door closed",

  21. "Barrier open",

  22. "Barrier closed",

  23. "Locked",

  24. "Unlocked",

  25. "Music",

  26. "Heating ON",

  27. "Heating OFF",

  28. "Water faucet open",

  29. "Water faucet closed",

  30. "Mail",

  31. "Key card present",

  32. "Key card absent",

  33. "Bell" and
