Quick Reference Guide

CUBEVISION MODULE

Item no. : 10561 / 13560
(Status: 01.2025)

Factory defaults

Default IP: 192.168.1.229
User name: admin
Password: admin

BAB TECHNOLOGIE GmbH
Hafenpromenade 1-2
44263 Dortmund
Germany

Phone: +49 (0) 231/ 476 425-30
Fax: +49 (0) 231/ 476 425-59
E-Mail: info@bab-tec.de
Internet: http://www.bab-tec.de

Made in Germany

Safety information

Electronic devices may be mounted and assembled by qualified electricians only. The applicable accident prevention regulations shall be observed.

• Network technology skills are required for the initial operation.

• The choked bus voltage must not be used as operating voltage 12–32 V DC.

• The device may only be operated with the specified operating voltage. Applying a higher operating voltage may result in damage to the device.

• If the device is connected to the Internet, please observe the common safety measures in order to protect it from unauthorized access (firewall rules, passwords etc.).

Failure to observe these instructions can result in damage to the device, fire or other dangers. The quick reference guide is part of the product and must remain with the end user.

Device structure

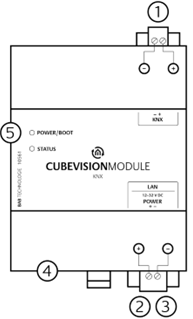

1. Bus connecting terminal KNX/EIB (type 10561)
   SMA female connector for EnOcean antenna (type 13560)

2. Connecting terminal for voltage supply

3. RJ-45 connector for Ethernet LAN

4. USB port—not in use

5. Signal LEDs

Information for qualified electricians

Mounting of the device

• Snap the device onto a mounting rail according to DIN EN 60715 (35 x 7,5mm).

• The device heats up in operation. Please observe the maximum ambient temperature and provide sufficient heat dissipation.

Connection of the device (figure 1)

• For KNX: Connect bus line with the bus connecting terminal (1).

• For EnOcean: Connect antenna for SMA female connector for EnOcean antenna (1).

• Connect voltage supply with the screw-type terminal (2) according to label (observe power consumption and polarity).

• Plug network line (LAN) in the RJ45 female connector (3).

Final preparations

• Switch on the supply voltage. Check the status LED.

• For KNX: Switch on bus voltage. EIBPORT does not require any ETS application. It is not required to programme the BCU. Further explanation see chapter "INITIAL OPERATION".

• For EnOcean: Mount antenna and ensure sufficient reception.

Operating status indication

The CUBEVISION MODULE has two Duo LEDs ("Power/Boot" and "Status"). Each Duo LED has a green and a red LED.

POWER / BOOT LED

STATUS LED

System requirements

Operating system:

• Platform-independent

For configuration:

• For PC commissioning

• Current browser for configuration

• BAB STARTER for CUBEVISION Editor

For CUBEVISION Visualisation client

• Software: Current browser (Chrome, Safari, Firefox)

• Hardware: Graphics Chip with 3D hardware acceleration

Establishing Connection

To access the device, it must be in the same network area as the computer. Proceed as follows:

Adjusting the network settings of your computer (Windows):

• Click "Start Button" --> "Control Panel" --> "Network".

• Select "Network Connection", then "LAN Connection".

• Click on "Properties".

• Select "Internet protocol Version 4 (TCP/IPv4)" and click "Properties" again.

• Note the current IP address settings (make a note or a screenshot). In our example, we refer to the 192.168.178.xxx.

• Now change the IP address settings (IP address and subnet mask) to the IP address range of the CUBEVISION MODULE .

Example of a valid configuration for the factory settings of the CUBEVISION MODULE :
Free IP-Address for PC: 192.168.1.100
Sub netmask: 255.255.255.0

• Confirm your input with "OK".

Now the IP address settings of the CUBEVISION MODULE can be changed to the IP address range in which the CUBEVISION MODULE is to be operated.

Retrieve The Web Interface

The device is configured via its web interface, so that it can be configured by a web browser.

In order to access the web interface, please proceed as described below:

• Open a browser and enter the IP address of the CUBEVISIONMODULE (192.168.1.229) into the address line.

• You will reach the CUBEVISION MODULE start page. The “Log In” unlocks the “Configuration” functions whereas “Information” shows general system information.

For factory settings, the login data is as follows:
User name: admin
Password: admin

• Log in to the web interface with your user data: “Log in”

• You can then also access the "Configuration" menu item.

• To return to the main menu, just click on the header graphic.

Adjusting the network configuration of the CUBEVISION MODULE

• Click on “Configuration“.

• Open the “Network” menu.

The following settings are available:

DHCP

Automatically obtains the network settings. A DHCP server must be available in the local network.

IP-Address/ Subnet mask / Gateway

Static IP address configuration consists of the IP address, subnet mask and gateway.

Example Configuration:
IP-Address: 192.168.178.229
Subnet mask: 255.255.255.0
Gateway: 192.168.178.1

DNS Server

DNS is the abbreviation for Domain Name System. The DNS server converts Internet addresses IP addresses.

NTP Server

NTP is a free service for synchronising the system time of Internet-compatible devices. NTP Server List: e.g. http://www.pool.ntp.org/zone/europe

• Click on „Save Configuration“ to apply the settings to the device.

Locate the device in the network

Using BAB STARTER, you can search for devices in the local networks: http://www.bab-tec.de/starter/en

Retrieve the Documentation

For more information, see  the link “Documentation”, which can be found on the start page of the device.

Notes For Browser Use

For access to the web interface, please use one of the following browsers:
Google Chrome, Microsoft Edge, Mozilla Firefox or Apple Safari

Firmware Updates

We inform you about new firmware for the CUBEVISION MODULE via our website and newsletter.

CUBEVISION 2+ App

For iOS^® and Android^® devices, the "CUBEVISION 2+ APP" is available for access the CUBEVISION 2+ visualisation. The app is free of charge.

Technical data

• Operating voltage: 12–32 V DC

• Maximal power consumption

  • at 12 V DC: 300 mA

  • at 24 V DC: 150 mA

• Typical power consumption: <= 5 W

• Connection: Power supply via screw-type terminal up to 3.3 mm²

• Connection: KNX via screw-type terminal up to 1.5 mm²

• Ambient temperature: –5 to +35 °C

Mechanical Data

• Assembly: Modular device (REG) housing 4 MW

• Dimensions (W x H x D) in mm: 72 x 90 x 63

• Housing: Plastic

• Degree of protection: IP20 (according to EN 60529)

EnOcean Specification

• Operating frequency: 868.3 MHz

• Range: 300in an open field / 30in buildings (varies depending on building material)

• Input objects: unlimited

• Output objects: 128

• External antenna: 2.50cable, magnetic base and SMA connector

• Repeater function

General informations

External access via plug&play VPN

The configuration menu is located in the web interface under the REMOTE ACCESS menu.

Further information on setting up, configuring and using the Plug & Play VPN solution can be found in the separate document at:
https://bab-tec.de/hooc/

Disposal instructions

Old appliances must not be disposed of with household waste! Dispose of old appliances at a collection point for electronic waste or via your specialist dealer. Dispose of the packaging material in the collection containers for cardboard and paper. [WEEE-Reg.-Nr.DE55712707]

[DE1921130422687]

Warranty

We reserve the right to make technical and formal changes to our product in the interest of technical progress. We provide a warranty in accordance with the statutory requirements.

If you are not sure whether your device is damaged, please contact our support:

• +49 (0) 231 / 476 425 30 or

• service@bab-tec.de

Please only send defective devices together with our RMA form. Request this form using the contact details above.

///
