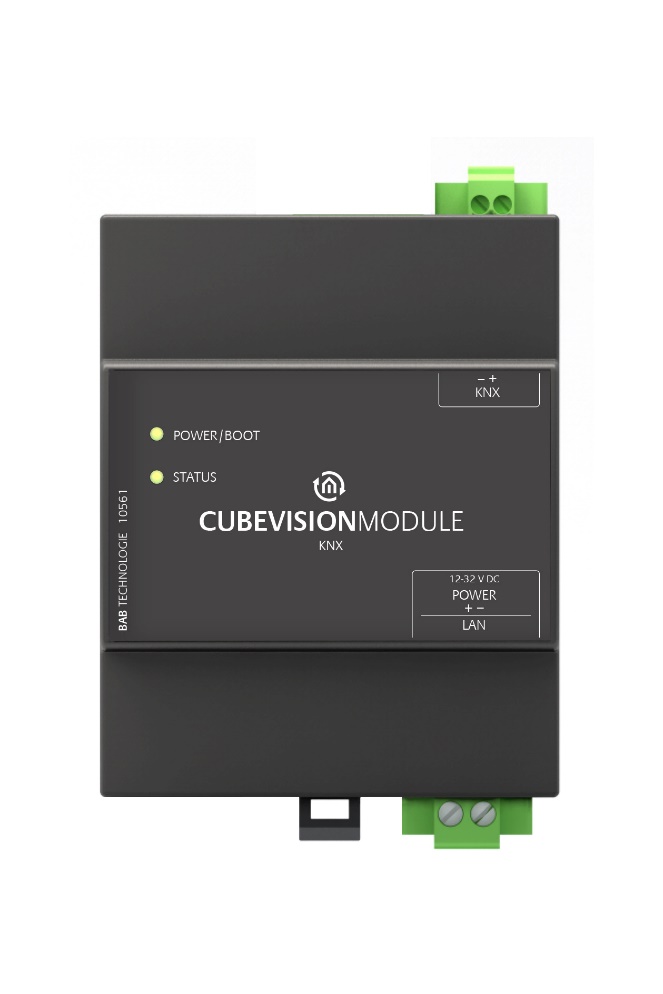

The device shown in these operating instructions is the CUBEVISIONMODULE (item no. 10561). Modular device (REG) housing 4TE.
Dimensions (width x height x depth): 70 x 90 x 63 mm.
In order to assemble the device, please proceed as described below:
The operating voltage of the CUBEVISION MODULE is 12-32 V DC.
-
Remove the pluggable screw terminals to facilitate the connection process.
-
Now connect the power supply cables and the KNX line (in case of the KNX/TP version) to the respective screw plug-in terminals.
In doing so, please make sure that the polarity corresponds to that shown on the front of the housing.
-
Screw the SMA connector of the magnetic base antenna to the SMA plug connector at the housing (in the case of the EnOcean version)
-
Insert the screw plug-in terminals into the respective connections
-
Snap the device onto the mounting rail according to DIN EN 60715 and connect the network cable.
-
Switch on the supply voltage and check the LED status (see chapter below).
LED status
The CUBEVISIONMODULE has two DUO LEDs ("Power/Boot" and "Status"). Each DUO LED has a green and a red LED. The top LED is the "Power/Boot" LED, the bottom LED is the "Status" LED.
POWER / BOOT LED
|
LED display |
Status |
|
OFF |
The device is not ready for operation. No operating voltage is supplied. |
|
GREEN |
The device is ready for operation. |
|
FLASHING ORANGE |
The device is booting. |
STATUS LED
|
LED display |
Status |
|
OFF |
The device is booting |
|
FLASHING GREEN |
The device has been started; the LED simulates a "heartbeat". The flashing interval increases depending on the device utilization. |
|
FLASHING RED |
KNX: device is communicating over KNX EnOcean: device is communicating over EnOcean |
Explanation:
The green "Power/Boot" LED lights up as soon as the CUBEVISIONMODULE is supplied with power. Two to three seconds after the power supply has been switched on, this LED also starts to flash red (flashing orange) until the booting process has been completed. Then the LED is permanently illuminated green, while the "Status" LED flashes green (simulates a "heartbeat"). The flashing frequency increases depending on the device utilization.
It takes approx. three (3) minutes to start the CUBEVISION MODULE.
///
