EIBPORT Logic group: query Concierge Status

To display the status of the Plug&Play VPN Concierge function in a visualization, there is to use a logic group in the LOGIKEDITOR (https://www.logikeditor.de ) of the EIBPORT that cyclically queries the status.

The concierge function can be activated by the user via a group address to allow a system integrator access if it is necessary.

This logic group queries the status of this function and passes on the current status to the KNX BUS (e.g. for a visualization).

To the function.

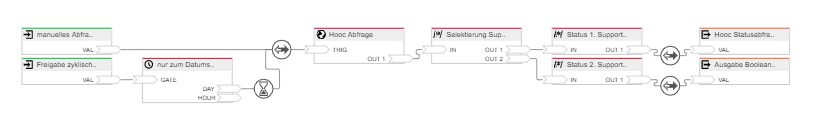

By http request ("Hooc query") the status of all set up supporters is queried and passed to the text processor "Selecting Supporter". This text processor reads the status of each individual supporter and passes it to the following text processor(s). The following text processor "Status X. Supporter" outputs the final status.

Depending on how many supporters are created, the corresponding number will be also:

• from outputs in the text processor "Selecting Supporter" and

• of text processors "Status X. Supporter" required.

The number can be expanded or minimized as needed.

In the text processors "Status X. Supporter" the corresponding ID must be assigned. The ID are assigned by the user in the "Administration of Supporters".

In the example the query is triggered with a delay before the date change. But can also be set up hourly by the time transmitter.

As an alternative to the cyclic query, a manual query is also possible at any time.

You can import this logic group directly in the LOGIKEDITOR of your EIBPORT.
https://www.logikeditor.de/en/gruppe/abfrage-concierge-status/

///
