1. Introduction
The pre-installed HOOC Services in the EIBPORT, CUBEVISION MODULE X, CUBEVISIONMODULE, APPMODULE is a convenient "Plug & Play" VPN solution for your secure remote access. The establishment of a port forwarding or a fixed IPv4 address is a thing of the past. No additional hardware is required.
Our partner for this development is company HOOC AG. HOOC AG is an internationally active company located in Switzerland.
The principle: Via the HOOC gateway (HOOC CONNECT E Gateway) integrated as standard in the EIBPORT, CUBEVISION MODULE X, CUBEVISIONMODULE, APPMODULE (hereinafter referred to as “gateway”) an encrypted VPN connection to the HOOC Cloud is established.
In this way, the "HOOC Cloud" creates its own virtual and completely isolated network for each system.

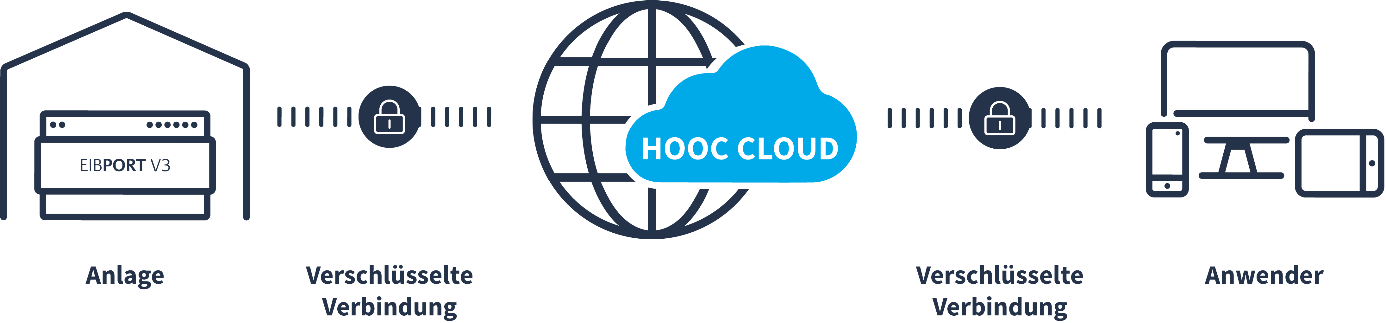

Principle - System remote access
The HOOC app on your iOS or Android client, but also on your PC, is using Secure Remote Access to establish an encrypted VPN connection to the HOOC cloud to the corresponding virtual network in the same way. After establishing the connections, a "virtual network cable" (Ethernet, Layer-2) is created between the system and the HOOC app. All protocols provided in the system's network can be used accordingly when using the HOOC services. Other deployed applications in the HOOC cloud, such as Secure Proxy, are based on the same principle.
The HOOC services together with the Gateways offers the most modern service for remote access, programming, control and maintenance in the field of KNX. In combination with the alerting, monitoring and reporting packages, HOOC together with the Gateway offers a unique all-round package in Europe for the carefree operation of KNX systems.
By using the BAB STARTER or via the web interface of your Gateway you can access to the HOOC Gateway Manager (remote system access) for required setup.

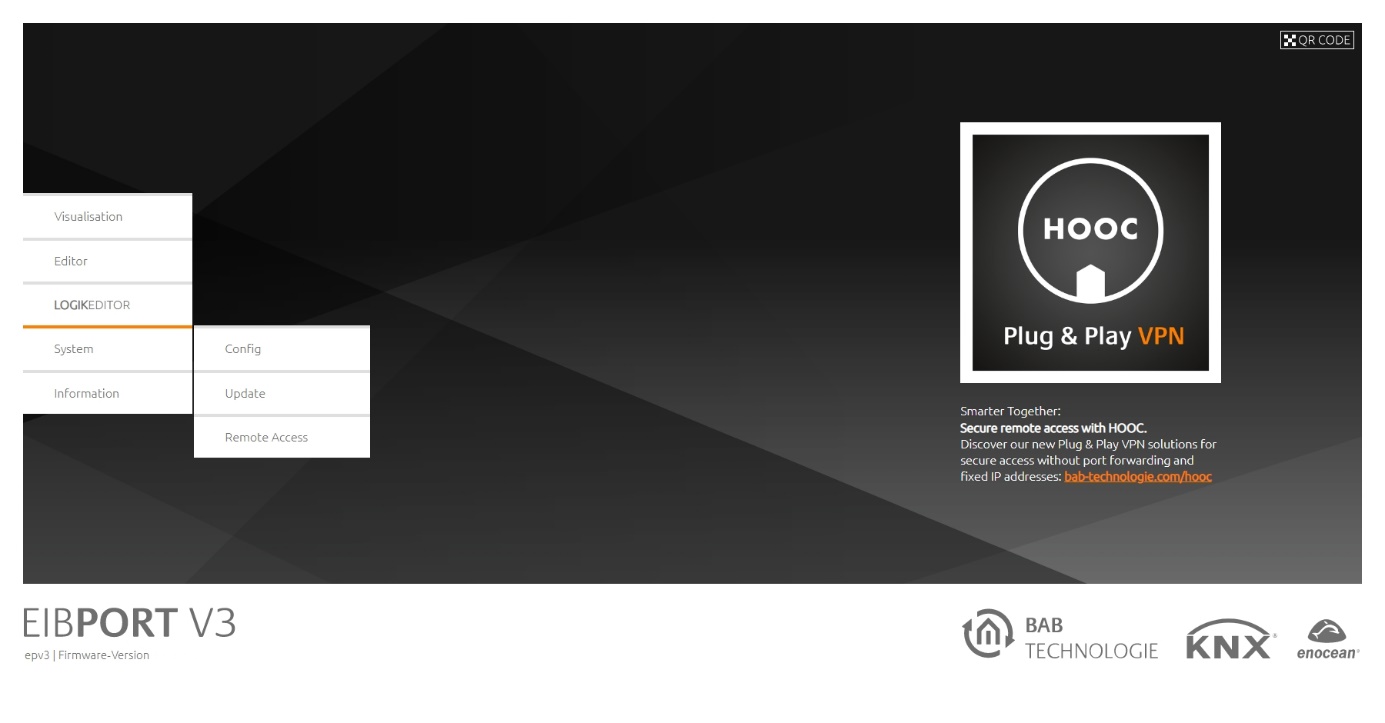

EIBPORT - System / Remote access
The HOOC Gateway Manager can be found in every EIBPORT since version 3.9.0. For older EIBPORT version’s 3 (year of production from August 2011) a free firmware update is available.

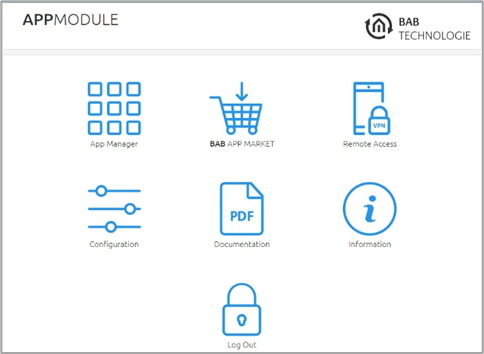

APPMODULE - Web interface after login

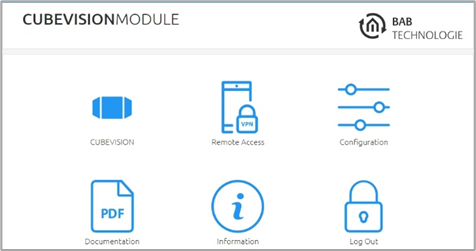

CUBEVISIONMODULE - Web interface after login

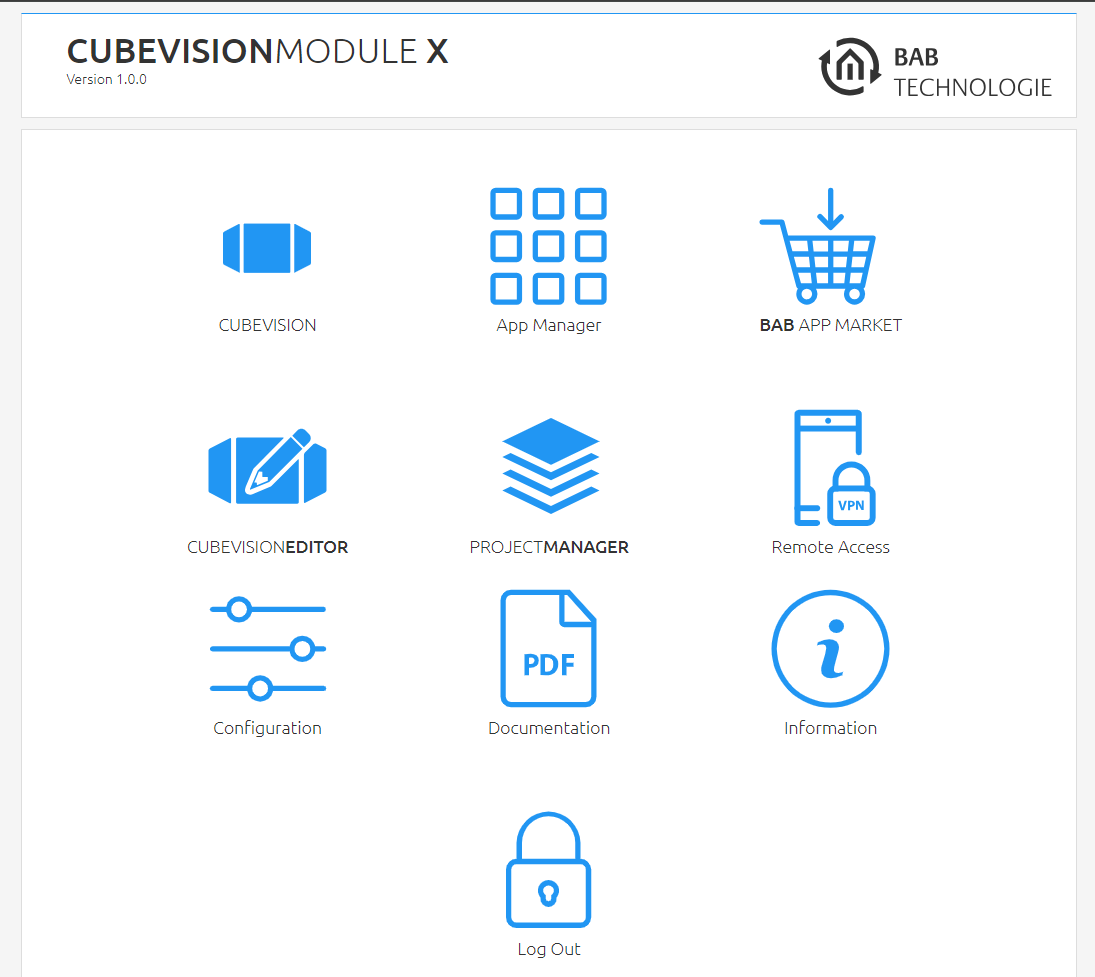

CUBEVISIONMODULE X - Web interface after login
With the modules, such as the CUBEVISIONMODULE X from version 1.0.0, CUBEVISIONMODULE from version 1.5.0 and APPMODULE from version 1.7.0, you can access the HOOC Gateway Manager via the “Remote Access” icon.
Further information about the HOOC Services can also be found at:
To be able to use the HOOC services, you need a paid license to use the services in addition to the gateway.
///
