The following figures show the pin assignment of the different DMX connectors.
3-Pin XLR Plug (Front View)
|
Pin |
Assignment |
|---|---|
|
1 |
Ground / Shield |
|
2 |
DMX – |
|
3 |
DMX + |
3-Pin XLR Socket (Front View)
|
Pin |
Assignment |
|
1 |
Ground / Shield |
|
2 |
DMX – |
|
3 |
DMX + |

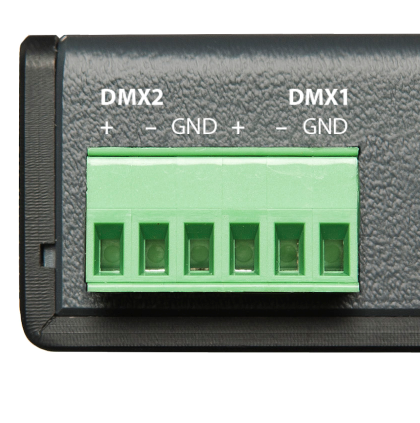

DUODMX GATEWAY (Front View)
(Difference compared to the DUODMX GATEWAY KNX SR REG: Two 3-pin pluggable screw terminals are used instead of one 6-pin pluggable screw terminal)
|
Pin |
Assignment |
|
1 |
Ground / Shield |
|
2 |
DMX – |
|
3 |
DMX + |
///
