1 Introduction
Thank you for buying the APPMODULE. The APPMODULE is a unique integration server that you can customise using the apps from the BAB APPMARKET. This documentation will help to familiarise you with the product and facilitate implementation.
BAB TECHNOLOGIE GmbH

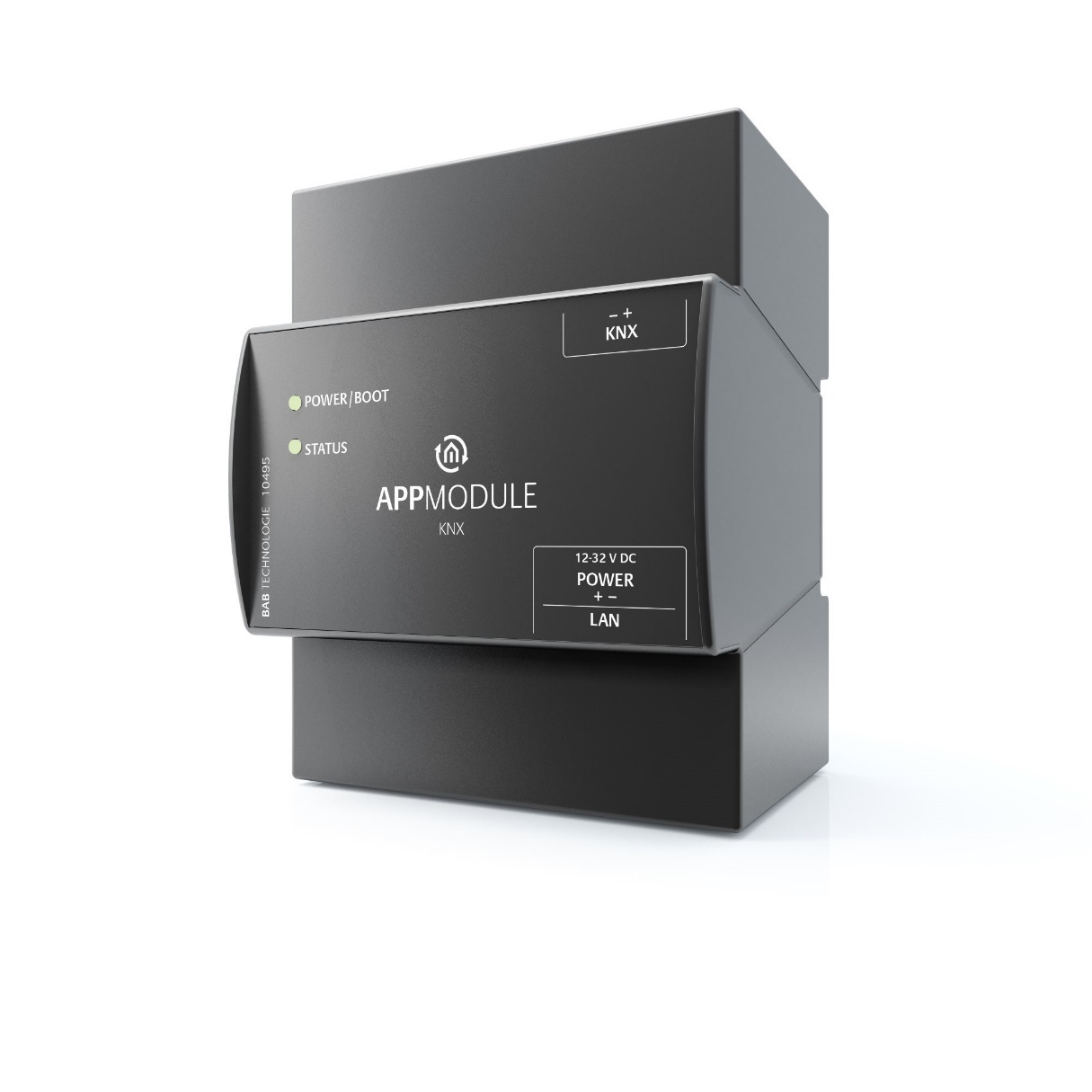

Figure 1: APPMODULE KNX
Product name: | APPMODULE |
Intended use: | Module to run applications |
Design: | Modular device (REG) |
Item number: | 10491 (IP), 10495 (KNX), 13501 (EnOcean) |
Functional overview
The APPMODULE links building automation to third-party applications that otherwise cannot be controlled by building control. The connection is established with applications that can be installed on the APPMODULE. You can select your very own combination of apps, and purchase individual apps from the BAB APPMARKET (https://www.bab-appmarket.de/de/ ). The APPMODULE is available as “IP” for EIBPORT, with KNX- or with EnOcean interface.
APPMODULE functional principle
On delivery, the APPMODULE contains only the basic software and has no application installed. You can purchase and download the applications for the APPMODULE in the BAB APPMARKET. For that purpose you will need an APPMARKET account and an APPMODULE registered in the APPMARKET.
In addition to the download of the purchased applications, there is the option of integration into the terminal configurator including the purchase of a Smart Home App.

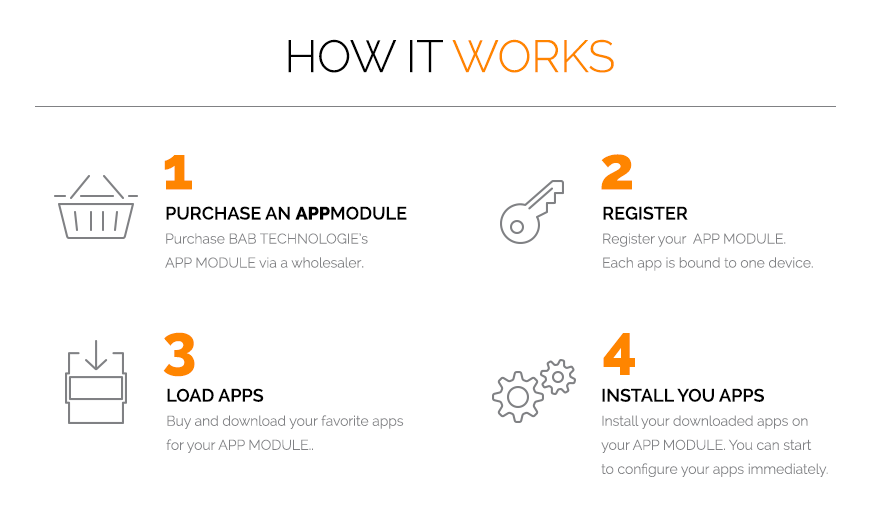

Figure 2: APPMODULE – How it works
You can find the APPMARKET on https://www.bab-appmarket.de/
Technical data
Article No.: 10491 (IP) | 10495 (KNX) | 13501 (EnOcean)
Operating voltage: 12-32V DC
Typical power consumption: 300 mA at 12V DC
Power consumption: <= 5 W
Connection: Power supply via screw-type terminal
Resistant to climate: EN 50090-2-2
Ambient temperature: -5 to +35 °C
Rel. humidity (non-condensing): 5% to 80%
Mechanical data:
Assembly: Modular device (REG) housing 4 TP
Dimensions (W x H x D) in mm: 70 x 90 x 63
Housing: Plastic
Degree of protection: IP20 (according to EN 60529)
Interfaces:
Ethernet over RJ-45 female connector
KNXconnection
EnOcean®: external SMA antenna
EnOcean specifications:
Operating frequency: 868.3 MHz
Range: 300 m in free space / 30 m in buildings (varies depending on building material)
Input objects: unlimited
Output objects: 128
External antenna: 2.50 m cable, magnetic base and SMA connector
Specific features:
A wide range of different smart home apps can be combined on one device
SDK available for manufacturers and developers
A steadily growing app portfolio available in the BAB APPMARKET (http://bab-appmarket.de )
Software requirements:
Operating System independent
Communication: Network interface
Browser: current standard browser
Scope of delivery and interfaces
The scope of delivery of APPMODULE includes the following content:
1x APPMODULE IP, KNX or EnOcean (currently being planned)
1x enclosed CD
1x 2.50 m antenna with magnetic base (for EnOcean only)
A power supply unit for the device is NOT included in the scope of delivery!
In addition to the connection for the power supply (12-32 V DC), the APPMODULE has the following interfaces:
1 x RJ 45 Ethernet 100Mbit/s Full Duplex
KNX® / TP connection or SMA female connector for EnOcean (planned)
Factory setting on delivery:
IP address: | 192.168.1.224 |
Host name: | appmodule.local |
Username: | admin |
Password: | admin |
Serial number / Registration key
The Serial Number (SN) and Registration Key are required to register the APPMODULE. You will find both as stickers on the packaging, in the quick start guide and as well on the backside of your device.
Updates
We reserve the right to offer firmware updates free of charge for the APPMODULE. We inform you about new firmware in our newsletter or on our homepage. The update files are available in the download section on our homepage.
Important information on the operating instructions
We reserve the right to make technical and formal changes to the product in the interests of technical progress. The information in this documentation may therefore not necessarily be up to date. Information on current APPMODULE firmware and on this description (“APPMODULE documentation”) can be found at www.bab-tec.de.
Functional safety
If there are certain requirements to minimize risks for people or objects (functional safety), additional measures are obligatory, which must be considered during planning and implementation. When using the APPs in the APPMODULE, there are interactions with many devices/connections (e.g. Internet) in the system, which may lead to risks. Especially failure of individual devices or functions or connections can lead to malfunction of the system. There are different ways to minimise the risks. That depends on the system and customer requirements.
These measures must always have the required independence from the operation of the system (APP MODULE with APP) and must always be available.
///
