Example logic groups Alexa device

The following example logic groups are for the individual functions of the "Alexa device".

Contents

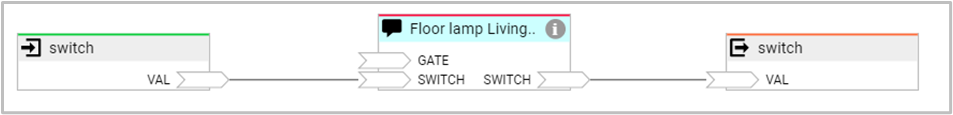

Function Switch

With this logic group you can trigger switching operations by voice command.

Example: "Alexa, switch on the living room floor lamp."

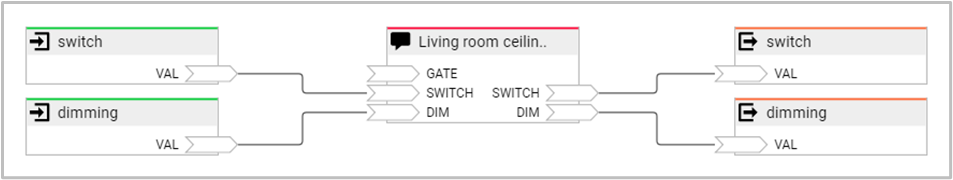

Function Switch and Dimmer

With this logic group you can trigger switching and dimming processes by voice command.

Example:

• "Alexa, turn on living room ceiling light."

• "Alexa, make living room ceiling light brighter."

You can also switch on a switched-off lamp directly with a dimming command (absolute value).

Example: "Alexa, dimmed living room ceiling light to 60%."

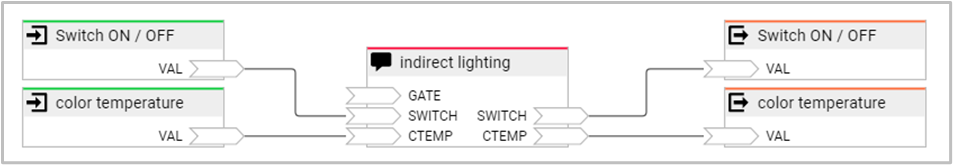

Function Switch and Color Temperature

With this logic group you can trigger switching commands by voice command and set the color temperature of a lamp by voice command. The lamp must support the adjustment of the color temperature.

Example:

• "Alexa, indirect lighting on."

• "Alexa, put indirect lighting on warm white."

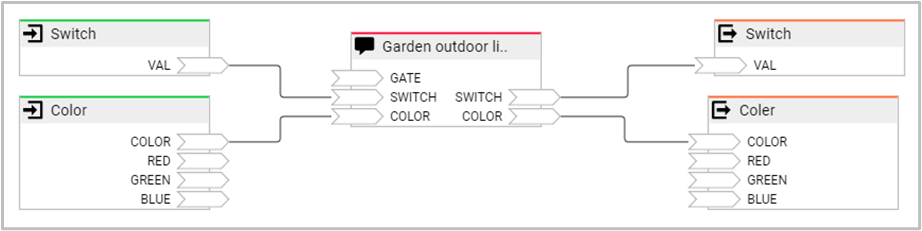

Function Switch and Color

With this logic group you can trigger switching commands by voice command and set the colour of the lamp. The lamp must support the choice of colour. The colour value is sent to the lamp with a combined colour value (DPT 236.600).

Example:

• "Alexa, garden outdoor lighting on."

• "Alexa, make garden outdoor blue."

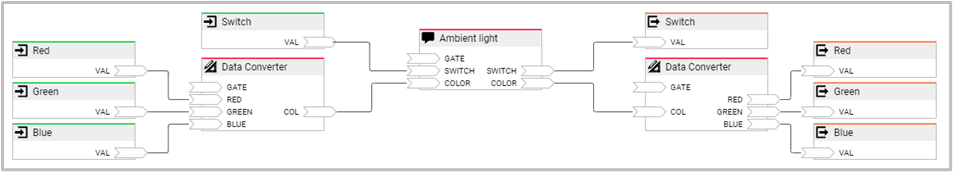

Function switch and color with Data Converter

See “Function Switch and Color“.

In this example, the data converter converts the colour value (DPT 236.600) into a 3*1-byte RGB colour value.

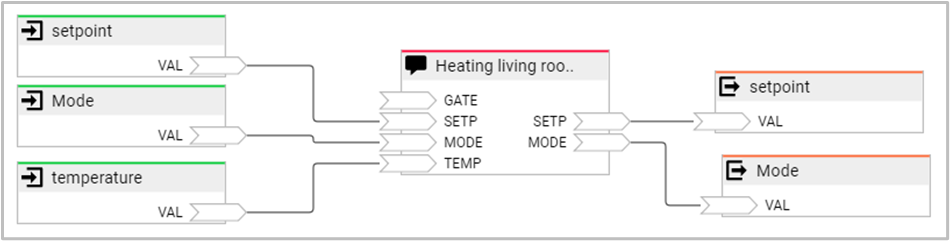

Function Temperature control

With this logic group you can control an RTR by voice command. Functions available are: Query actual temperature, set and query setpoint temperature, set and query mode or operating mode.

Example:

• "Alexa, set the temperature for living room heating to 20 degrees."

• "Alexa, how's the heating setting in the living room?" Inquiry of the set temperature.

• "Alexa, what's the temperature of heating living room?" Inquiry of the actual temperature.

• "Alexa, set mode living room heating to automatic."

• "Alexa, set living room heating mode to off."

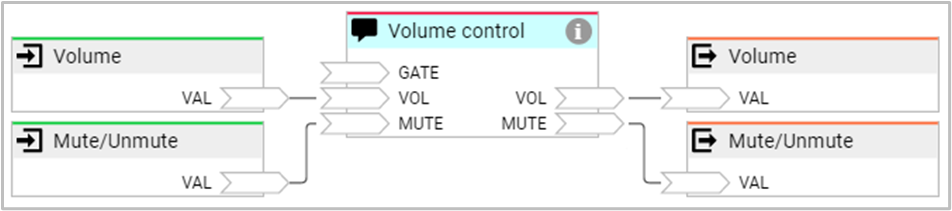

Function Volume

With this logic group you can set the volume by voice command and mute/unmute. This feature is currently only available in English.

For example,

• "Alexa, set the volume of Volume control to 50%."

• "Alexa, turn the volume down on Volume control by 20."

• "Alexa, mute/unmute volume control."

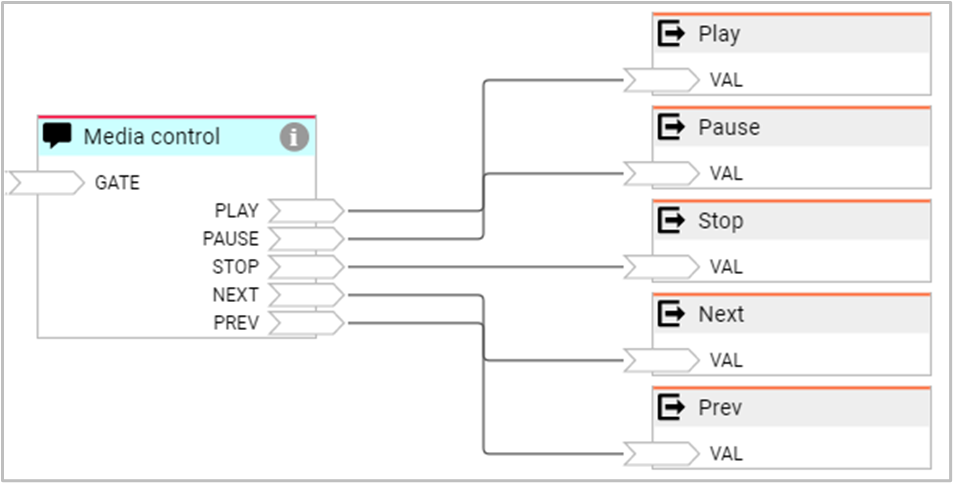

Function Media Control

With this logic group you can trigger switching commands for Play, Pause, Stop, Next and Preview by voice command. This feature is currently only available in English.

Example:

• "Alexa, play Media control."

• "Alexa, stop media control."

• "Alexa, next song on media control."

Because Amazon does not currently support sending status information for media control, this feature has no inputs

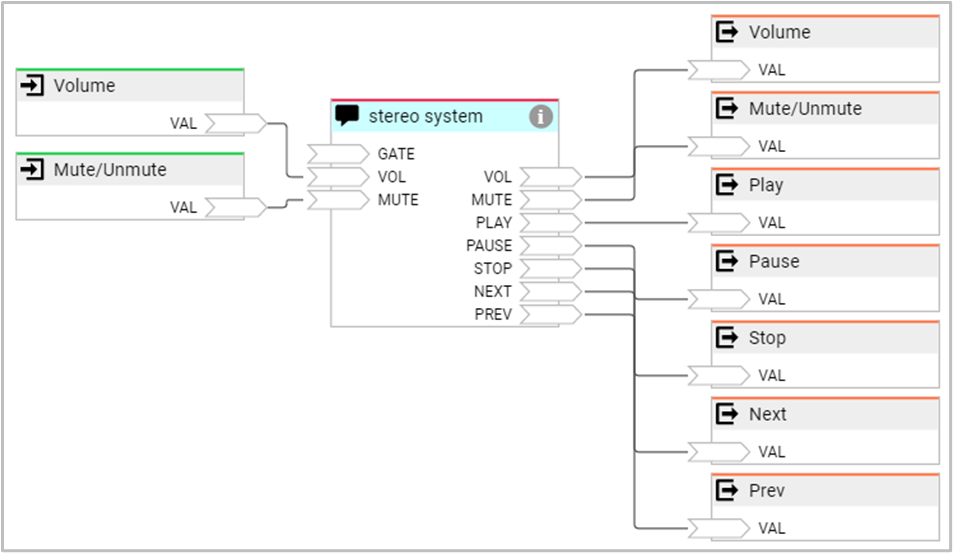

Function Volume and Media Control

This logic group is a combination of volume and media control (see 4.7 and 4.8). This feature is currently only available in English.

///
