12 REMOTE ACCESS - plug&play VPN

In the menu item "Remote Access" there is the function from firmware version 1.5.0 to use the CUBEVISIONMODULE X as a HOOC gateway in order to establish a secure VPN connection to your building control.

The integrated VPN solution eliminates the need to purchase and install costly additional hardware. The HOOC CONNECT E Gateway in the CUBEVISIONMODULE X connects to the HOOC Cloud via an encrypted and secured VPN connection. It forms the heart of the HOOC VPN solution and offers a comprehensive user administration as well as many additional features such as a KNX bus monitor or alarm messages with push function.

Further instructions on setting up, configuring and using the Plug & Play VPN solution can be found in the separate document: "Documentation-HOOC".
More information at https://bab-technologie.com/hooc/?lang=en

The HOOC Gateway Manager Configuration menu is located on the CUBEVISIONMODULE X web interface under the “Remote Access” menu.

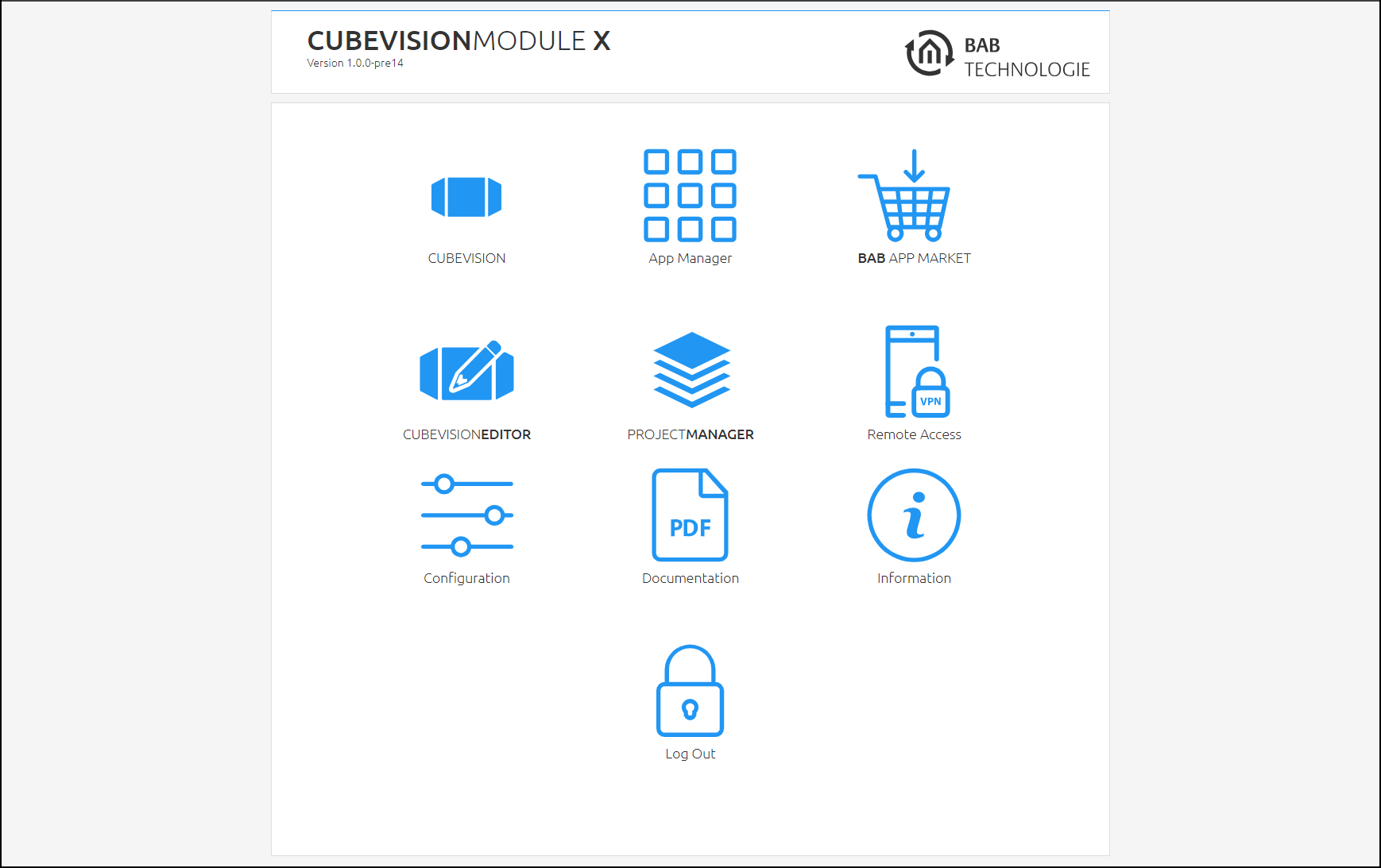

1. Please call up the web interface of your CUBEVISIONMODULE X:

2. Click on the menu item „Remote Access“, here highlighted orange.

///
