Quick Reference Guide

CUBEVISION MODULE X

Item no. 10562
(Status: 04.2024)

Factory defaults:

Default IP: 192.168.1.243
Hostname: cx.local
User name: admin
Password: admin

---

BAB TECHNOLOGIE GmbH
Hafenpromenade 1-2
DE - 44263 Dortmund

Phone: +49 (0) 231 / 476 425-30
Fax: +49 (0) 231 / 476 425-59
E-Mail: info@bab-tec.de
Internet: http://www.bab-tec.de

Made in Germany

---

SAFETY INFORMATION

Electronic devices may be mounted and assembled by qualified electricians only. The applicable accident prevention regulations shall be observed.

• Network technology skills are required for the initial operation.

• The choked bus voltage must not be used as operating voltage 12–32 V DC.

• The Registration Key for the BAB APPMARKET is located on a sticker on the back side of the device and in this quick reference (see below). Please keep this key carefully. It is necessary for registration in the APP MARKET.

• The device may only be operated with the specified operating voltage.
  Applying a higher operating voltage may result in damage to the device.

• If the device is connected to the Internet, please observe the common safety measures in order to
  protect it from unauthorized access (firewall rules, passwords etc.).

Failure to observe these instructions can result in damage to the device, fire or other dangers. The quick reference guide is part of the product and must remain with the end user.

---

Device structure

---

Information for qualified electricians

Mounting of the device

• Snap the device onto the mounting rail according to DIN EN 60715.

• The device heats up in operation. Please observe the maximum ambient temperature and provide sufficient heat dissipation.

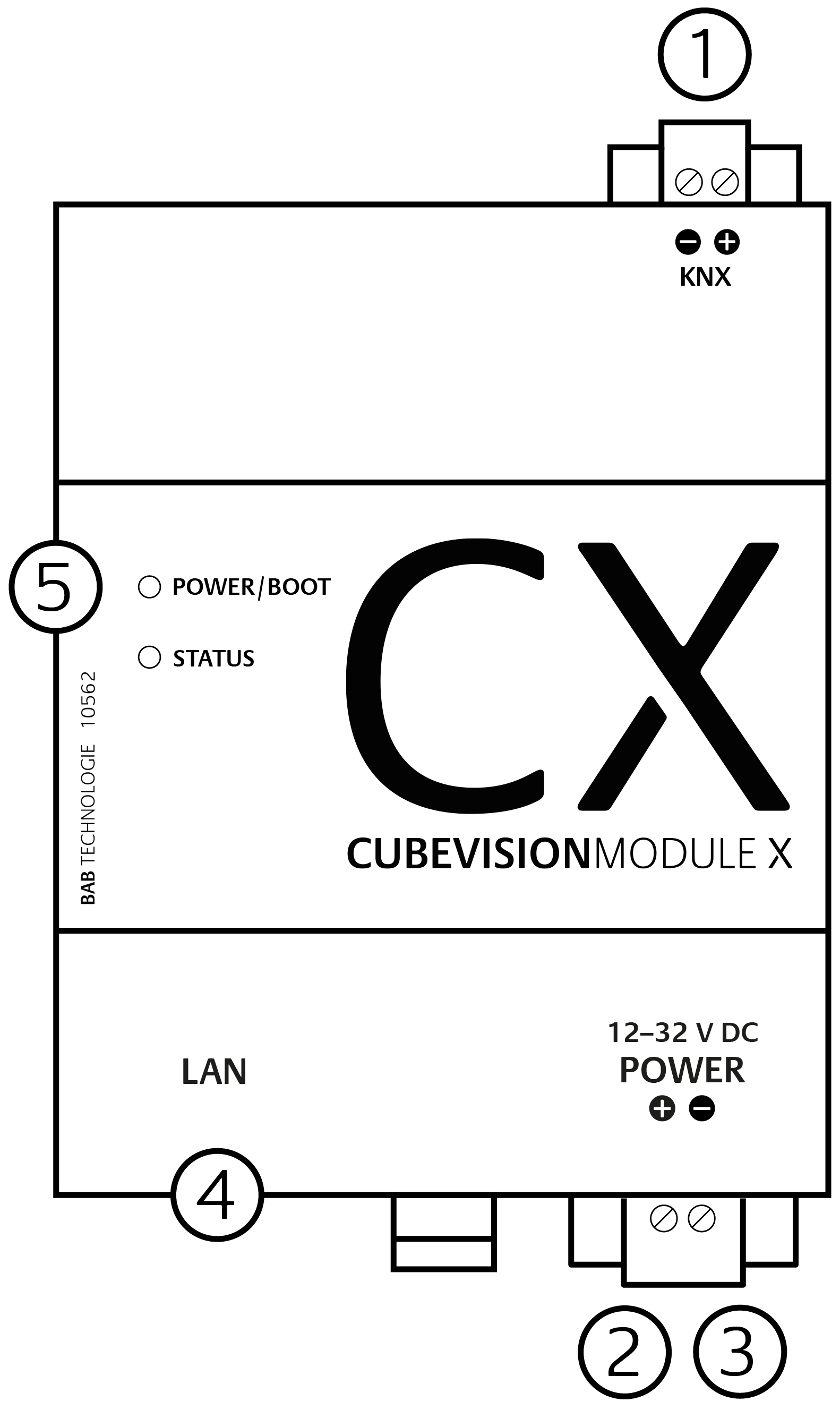

Connection of the device (figure 1)

• For KNX: Connect bus line with the bus connecting terminal (1).

• Connect voltage supply with the screw-type terminal (2) according to label (observe power consumption and polarity).

• Plug network line (LAN) in the RJ45 female connector (3).

Final preparations

• Switch on the power supply. Check the status LEDs.

• For KNX: Switch on bus voltage. The BCU is not programmed via an ETS application, but via the web interface.

---

Operating status indication

Das CUBEVISION MODULE X hat zwei Duo-LEDs („Power/Boot“ und „Status“). Eine Duo-LED besitzt jeweils eine grüne und eine rote LED.

POWER / BOOT LED

STATUS-LED

---

Establishing connection

Adjusting the network settings of your computer (Windows):

• Click "Start Button" --> "Control Panel" --> "Network".

• Select "Network Connection", then "LAN Connection".

• Click on "Properties".

• Select "Internet protocol Version 4 (TCP/IPv4)" and click "Properties" again.

• Note the current IP address settings (make a note or a screenshot). In our example, we are referencing 192.168.178.xx.

• Now change the IP address settings (IP address and subnet mask) to the IP address range of the CUBEVISION MODULE X .
  Example of a valid configuration with factory settings:
  Free IP address for PC: 192.168.1.100 and subnet mask: 255.255.255.0

• Confirm your input with "OK".

Now the IP address settings of the CUBEVISION MODULE X can be changed to the IP address range in which the CUBEVISION MODULE X is to be operated.

---

Retrieve the Webinterface

The CUBEVISION MODULE X is configured via its web interface, so it can be configured using a web browser.
In order to access the web interface, please proceed as described below:

• Open a browser and enter the IP address of the CUBEVISION MODULE X (192.168.1.243) into the address line.

• You will reach the CUBEVISION MODULE X start page. The “Log In” unlocks the “Configuration” functions whereas “Information” shows general system information.

For factory settings, the login data is as follows:
User name: admin
Password: admin

• You can then also access the "Configuration" menu item.

• To return to the main menu, just click on the header graphic.

Adjusting the network configuration of the CUBEVISION MODULE X

• Click on “Configuration“.

• Open the “Network” menu.

The following settings are available:

DHCP
Automatically obtains the network settings. A DHCP server must be available in the local network.

IP-Adresse/ Subnet mask / Gateway
Static IP address configuration consists of the IP address, subnet mask and gateway.

Example Configuration:
IP-Address:       192.168.178.243
Subnet mask:   255.255.255.0
Gateway:          192.168.178.1

DNS Server
DNS is the abbreviation for Domain Name System. The DNS server converts Internet addresses IP addresses.

NTP Server
NTP is a free service for synchronising the system time of Internet-compatible devices. NTP Server List: e.g. http://www.pool.ntp.org/zone/europe

Click on „Save Configuration“ to apply the settings to the device.

Locate the device in the network

Using BAB STARTER, you can search for devices in the local networks:
http://www.bab-tec.de/starter/en

---

RETRIEVE THE DOCUMENTATION

---

Notes for browser use

For access to the web interface, please use one of the following browsers: Google Chrome, Microsoft Edge, Mozilla Firefox or Apple Safari

---

Firmware Updates

We inform you about new firmware for the CUBEVISION MODULE X in our newsletter or on our homepage.

---

SYSTEM REQUIREMENTS

Operating system:

• Platform-independent

For configuration PC for commissioning:

• Web-Browser für die Konfiguration

For CUBEVISION:

Visualisation client

• Software: Current browser (Chrome, Safari, Firefox or Edge)

• Hardware: Graphics Chip with 3D hardware acceleration

---

CUBEVISION 2+ APP

For iOS^® and Android^® devices, the "CUBEVISION 2+ APP" is available for access the CUBEVISION visualisation. The app is free of charge.

---

Technical data

• Operating voltage: 12–32 V DC

• Maximal power consumption:

  • at 12 V DC: 300 mA

  • at 24 V DC: 150 mA

• Typical power consumption: <= 5 W

• Connection: Power supply via screw-type terminal up to 3.3 mm²

• Connection: KNX via screw-type terminal up to 1.5 mm²

• Ambient temperature:-5 to +35 °C

Mechanical data

• Modular device (REG) housing 4 MW

• Dimensions (W x H x D) in mm: 72 x 90 x 63

• Housing: Plastic

• Degree of protection: IP20 (according to EN 60529)

---

GENERAL INFORMATIONS

External access via PLUG&PLAY VPN

The configuration menu is located in the web interface under the REMOTE ACCESS menu.

Further information on setting up, configuring and using the Plug & Play VPN solution can be found in the separate document at:
https://bab-tec.de/hooc/

Disposal instructions

---

Warranty

We reserve the right to make technical and formal changes to the product, insofar as they serve technical progress. We provide a warranty within the scope of the statutory provisions.

If you are not sure whether there is a defect in the unit, please contact our support team:

• +49 (0) 231 / 476 425 30 or

• service@bab-tec.de.

Please send defective units only together with our RMA form. Please request this form using the contact details above.

///
