Segment Coupler (SC)
The physical address corresponds to that of a standard KNX bus device (X.Y.Z, Z ≠ 0) and must match the logical topology of the KNX installation.

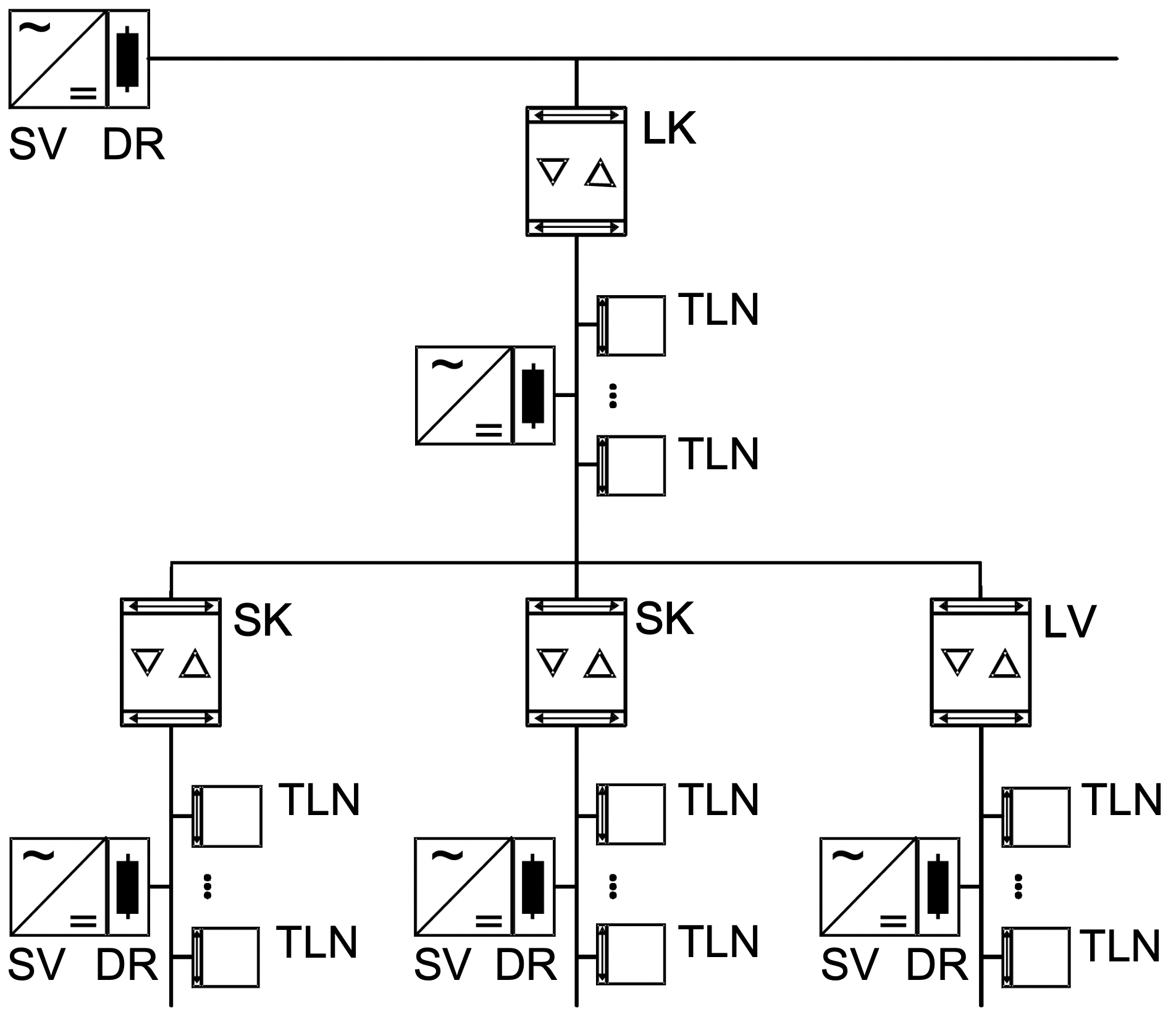

The Segment Coupler is used to divide a KNX line (maximum 256 devices) into independent line segments.
Group communication can be configured with or without filtering.
The Segment Coupler is logically assigned to the subordinate line segment.
For further information, refer to the technical documentation.
Line Repeater (LR)
The physical address corresponds to that of a standard KNX bus device (X.Y.Z, Z ≠ 0) and must match the logical topology of the KNX installation.
The Line Repeater is also used to divide a KNX line (maximum 256 devices) into independent line segments.
It regenerates and repeats telegrams within a KNX line. Filtering is not available in this operating mode.
For further information, refer to the technical documentation.
Abbreviations
|
Abbreviation |
Description |
|---|---|
|
SC |
Segment Coupler |
|
LR |
Line Repeater |
|
TLN |
KNX Bus Device |
|
PS |
KNX Power Supply |
|
CH |
Choke |
Note
Each line segment requires a separate KNX Power Supply (PS) including a Choke (CH).
///
