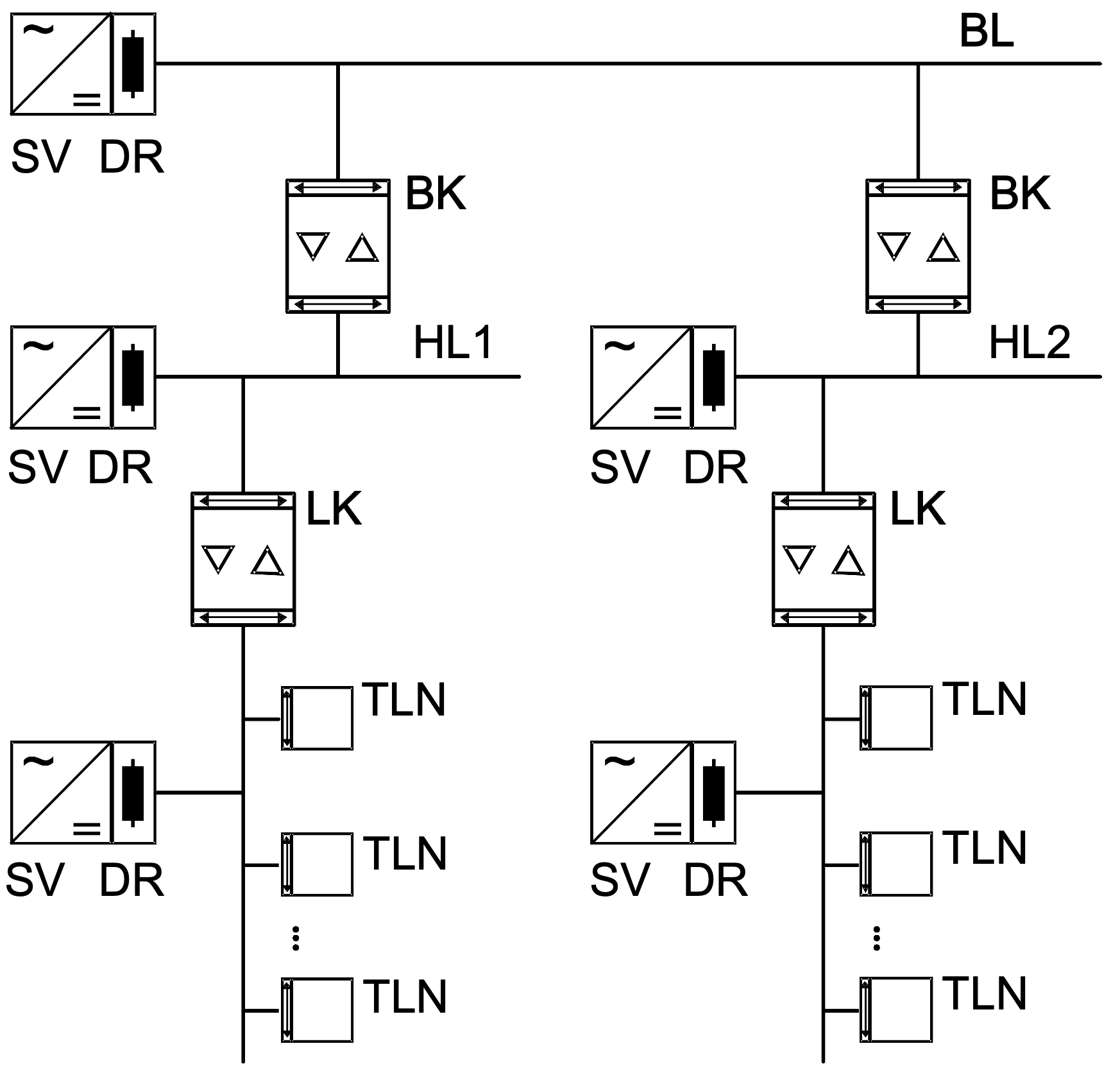

Area Coupler (AC)
The physical address corresponds to that of an Area Coupler (X.0.0) and must match the logical topology of the KNX installation.
The Area Coupler connects a Backbone Line (BL) to an Area Line (AL).
Group communication can be configured with or without filtering.
The coupler is logically assigned to the subordinate line.
For further information, refer to the technical documentation.
Line Coupler (LC)
The physical address corresponds to that of a Line Coupler (X.Y.0) and must match the logical topology of the KNX installation.
The Line Coupler connects a Line (L) to a Backbone Line (BL).
Group communication can be configured with or without filtering.
The coupler is logically assigned to the subordinate line.
For further information, refer to the technical documentation.
Abbreviations
|
Abbreviation |
Description |
|---|---|
|
AC |
Area Coupler |
|
LC |
Line Coupler |
|
TLN |
Bus Device |
|
PS |
KNX Power Supply |
|
CH |
Choke |
Note
Each line segment requires a separate KNX Power Supply (PS) including a Choke (CH).
///
