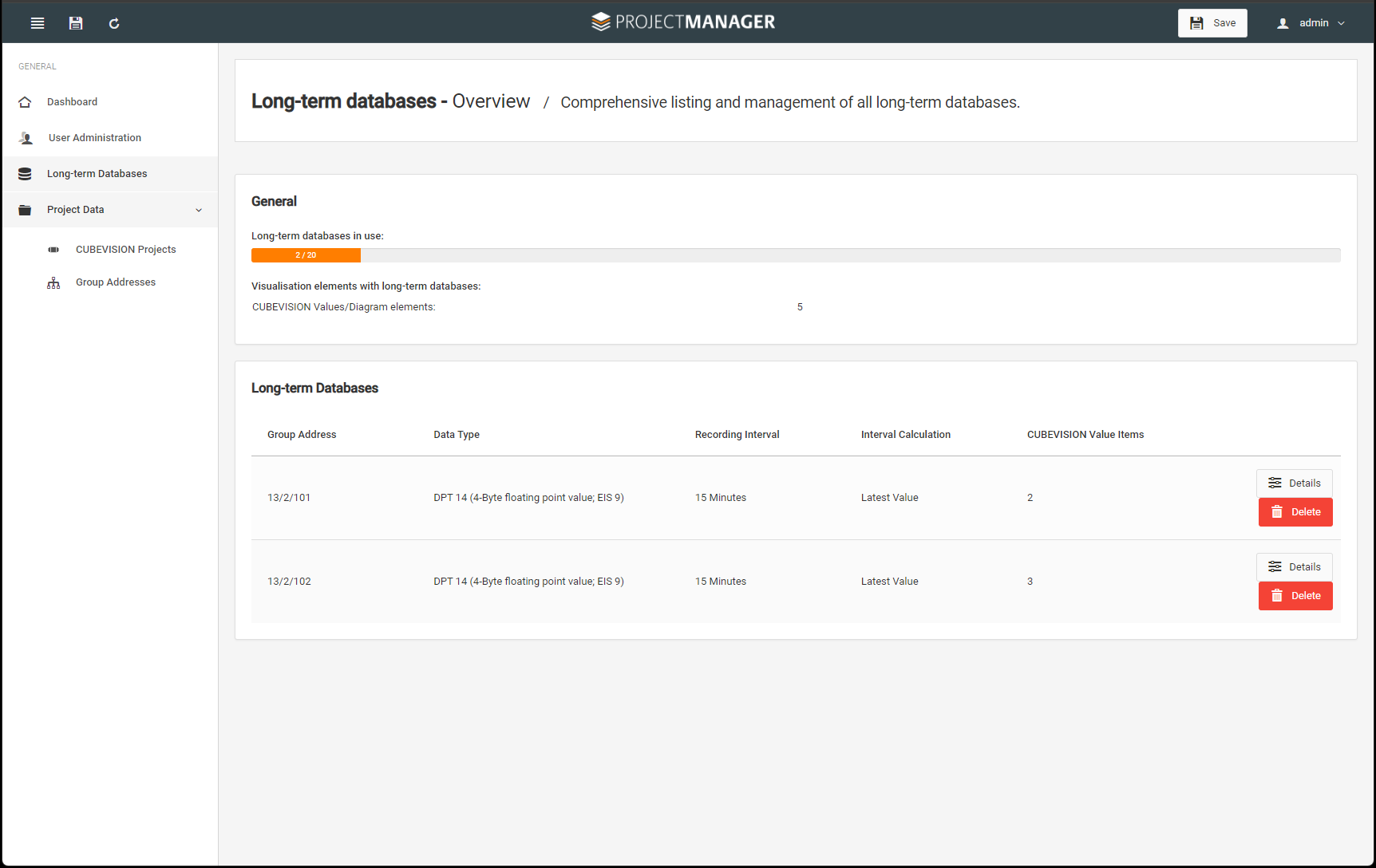

In this dialogue you can see the current status of long-term databases in use. Up to 20 databases can be activated and used via the CUBEVISION visualisations. When the databases are created, the respective group address and the DPT are adopted. Once a long-term database has been configured, it can no longer be edited. The use of these long-term databases is possible as often as desired for the corresponding visualisation elements.
You have an overview in the "General" information window:
-
About the number of used long-term databases up to the maximum number 20 and
-
their use in the CUBEVISION visualisation.
There is also another information window to display details of the long-term databases or to delete the databases.

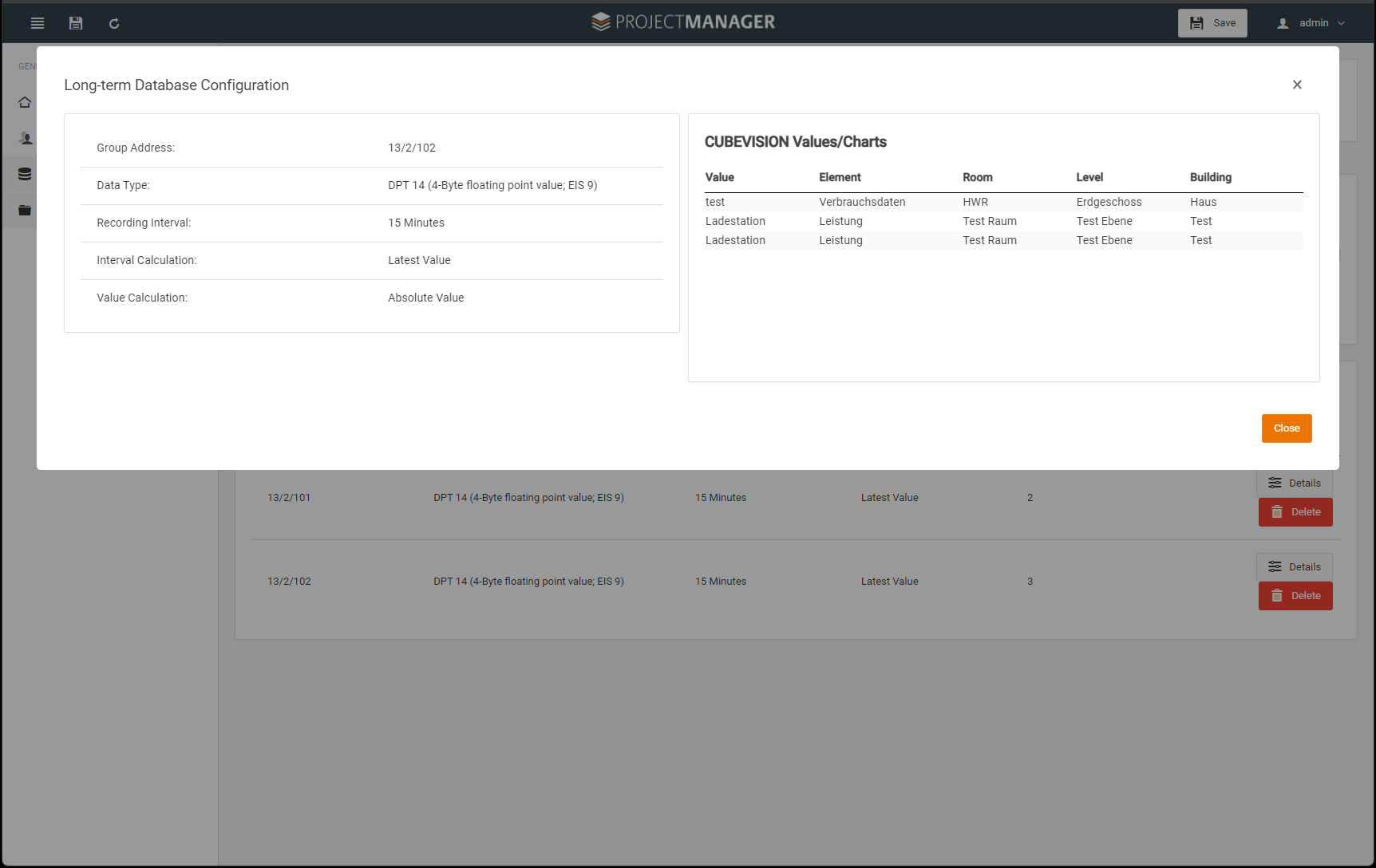

Here you can view the details, the existing configuration, for your selected long-term database.
