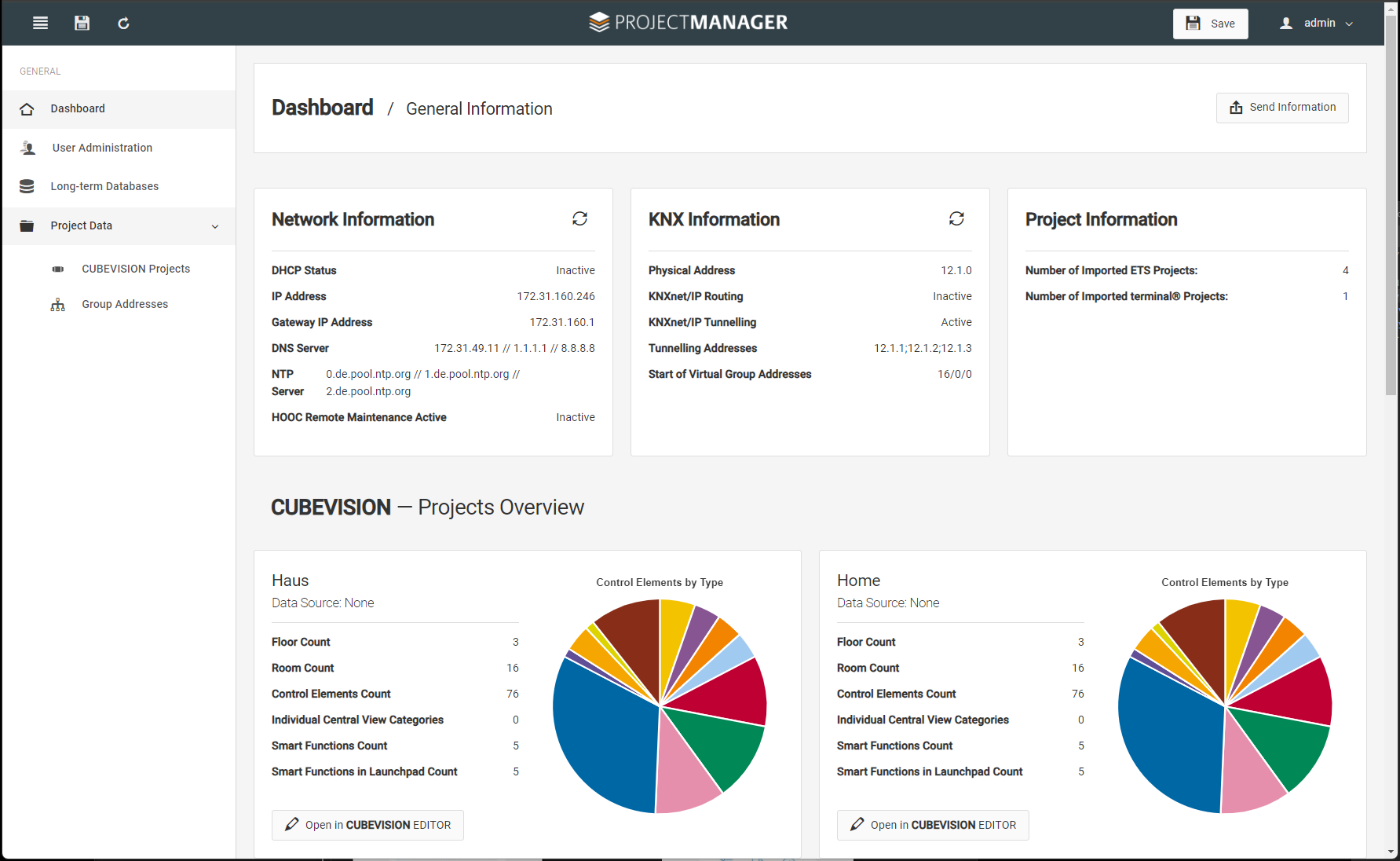

The dashboard allows you to see necessary information at a glance. Messages from the unit are displayed as well as statistics on system utilisation.
The following overviews are available in the dashboard:
-
Network information
-
KNX information
-
Project information
-
CUBEVISION Project overview for the respective projects
This information and messages should help you to monitor the status of the CUBEVISIONMODULE X and the processes efficiently to ensure a high stability of your visualisation and building control.
Network settings:
The current network settings of the CUBEVISIONMODULE X are clearly displayed.
KNX settings:
The settings from the configuration/KNX are displayed in a compact overview. This allows you to see immediately whether, for example, tunnelling or routing is activated.
Project databases:
The number of existing project databases is displayed.
Project overview:

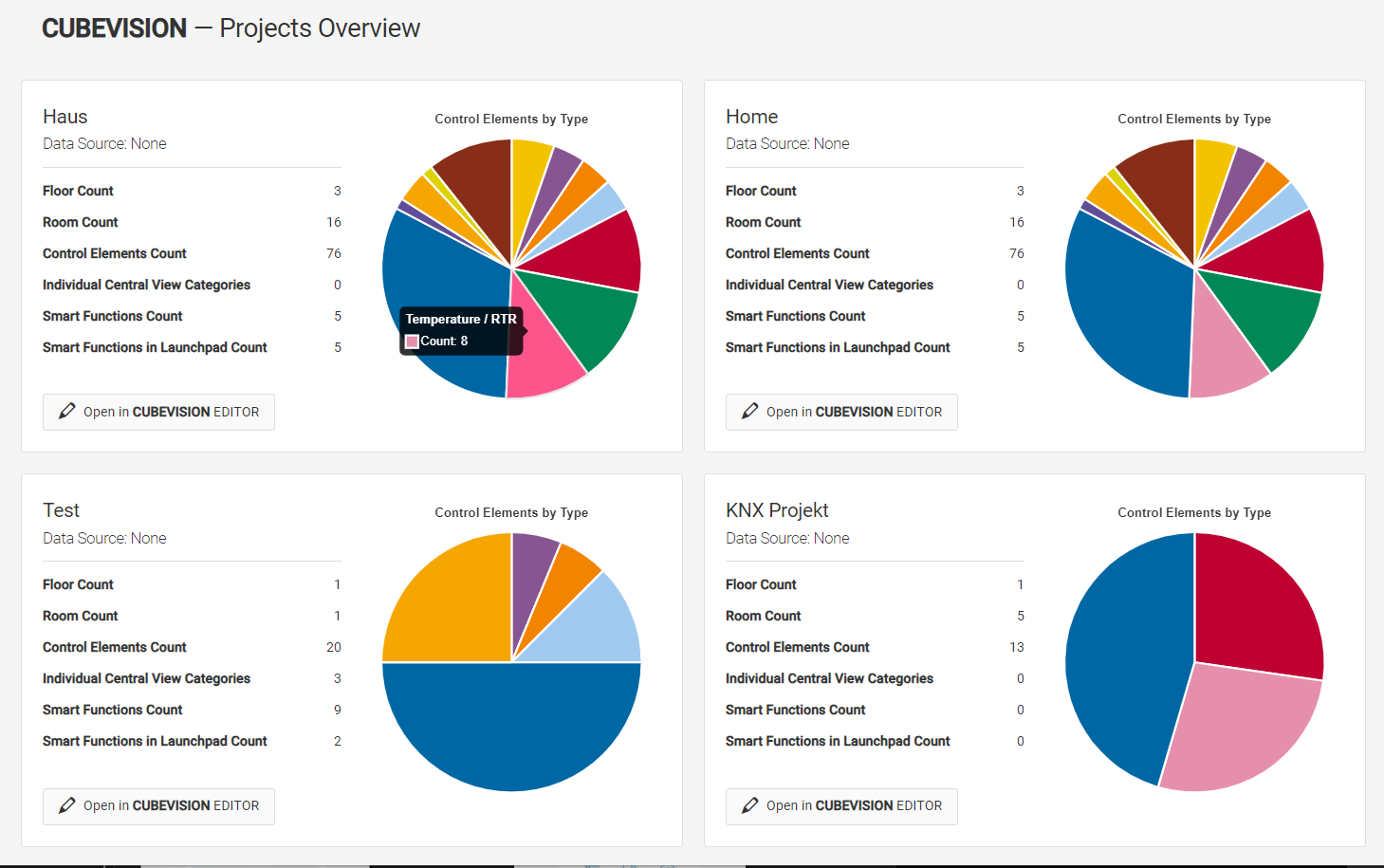

A graphic overview is created for each project on the unit.
This overview shows whether the project is connected to a project database or whether there is no assignment yet.
The overview of the visualisation elements used is available as a circle graphic. The respective element type is displayed when the colour area is touched.
In addition, the respective number of visualisation structures (levels, rooms, control elements) is listed.
Further characteristic values are available as an overview, such as: Central View categories, Smart Functions, information on the Launchpad.
