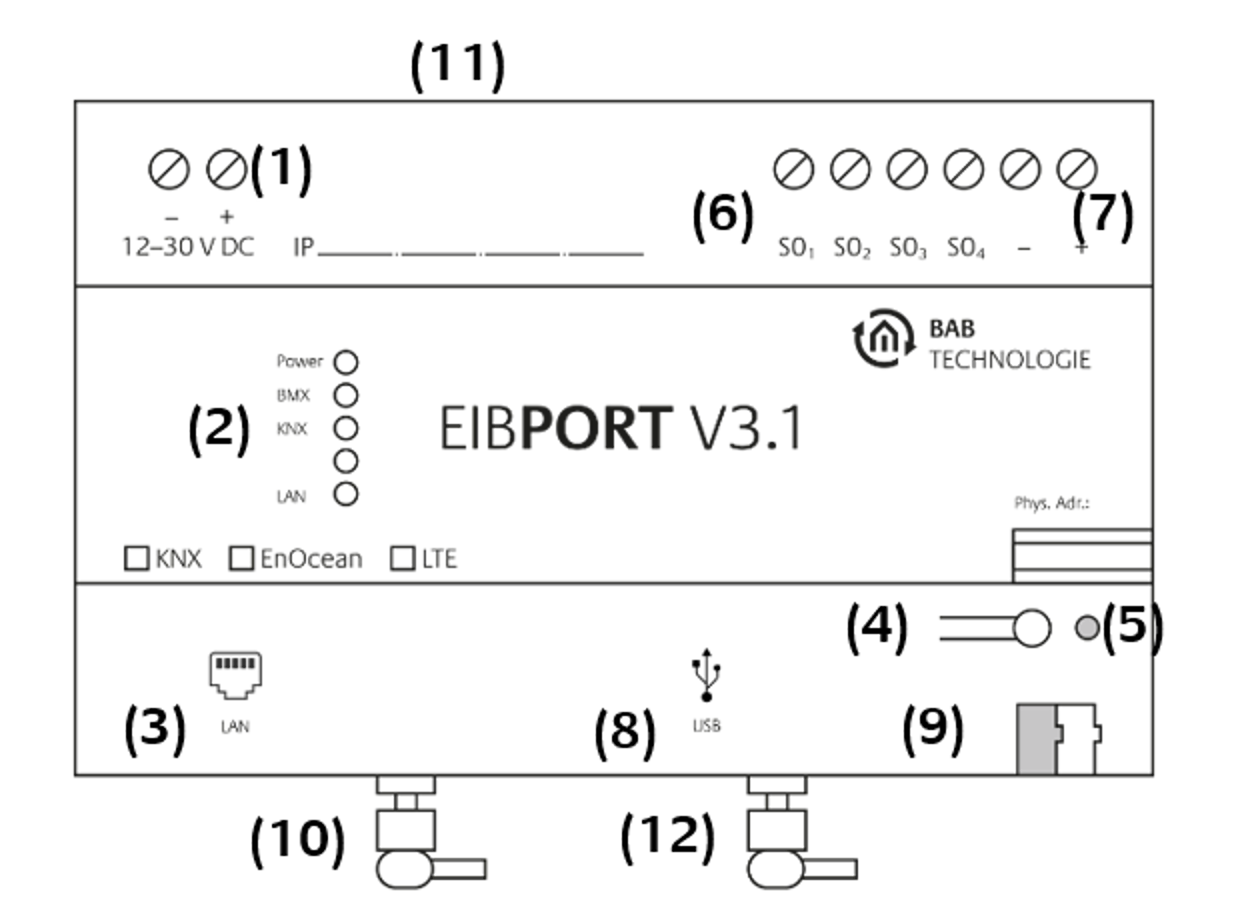

Device Overview

(1) Connection terminal for power supply 12-30 V DC, <= 4 VA

(2) Signal LEDs

(3) LAN (RJ45) connection for Gigabit Ethernet

(4) Test button to check the KNX bus voltage (press for ≥ 1 s) and to initiate the RECOVERY function

(5) Test button LED

(6) 4 x S0 interfaces (e.g. for energy meters)

(7) Connection terminal for S0 power supply 24 V DC

(8) 2x USB 3.1 interface for SDMODULE and or 1-Wire (‘bus master’ required, see separate compatibility list)

(9) KNX/TP bus connection terminal (type 10105 / 10505 / 10405)

(10) SMA socket for

• EnOcean antenna (type 10505)

• LTE antenna ‘MAIN’ (type 10405)

(11) SIM card slot (for type 10405)

(12) SMA socket for

• LTE antenna ‘SEC’ (type 10405)
