If the LED indicates that the device has been started correctly, it can be commissioned. The device is commissioned only via network and web browser. Programming using ETS is not necessary (except for hardware version 1).
Note: If the browser blocks the execution of the Java machine, please use the BAB STARTER program.
Commissioning using BAB STARTER
Once the BAB STARTER has been installed, it is started via the following icon.
Note: Please refer to the separate BAB STARTER documentation. It is available in the download section at http://www.bab-tec.de or on the CD that was supplied with the EIBPORT. The BAB STARTER has an integrated Java machine. Therefore, no local Java installation is required. You can access all EIBPORT levels directly from the BAB STARTER menu.

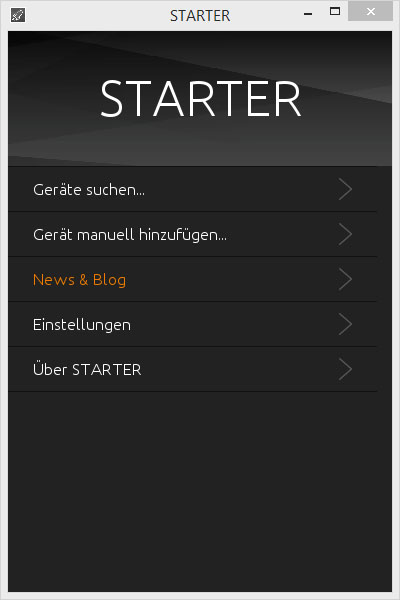

When you open the BAB STARTER for the first time, a start screen is displayed with the following options:
Default IP address / discovery tool
To call up the EIBPORT, simply enter the IP address into the address line of the browser. If the EIBPORT's factory settings are still in place, it can be accessed via the default IP address. This depends on the firmware version:
-
Up to firmware Version 0.10.2 => 192.168.1.1
-
From firmware Version 0.11.1 => 192.168.1.222
If the EIBPORT can’t be reached from both it will have been in use before already and the IP Address was changed. To set the device in operation nevertheless the „Discovery tool“ will help you to find the device in the network. This tool will be delivered with the installation CD or alternatively can be downloaded from BAB TECHNOLOGIE GmbH (http://www.bab-tec.de/index.php/eibport_v3_de.html ).
The tool shows you the address information of a device, even if it is not in your network range. If the device is in the same IP range, it is displayed in green; if it is not in the same range, it is highlighted in yellow. If this is the case, you must set the IP address of your computer to the same range as the EIBPORT. Hardware version 1 devices are not displayed in the Discovery Tool.

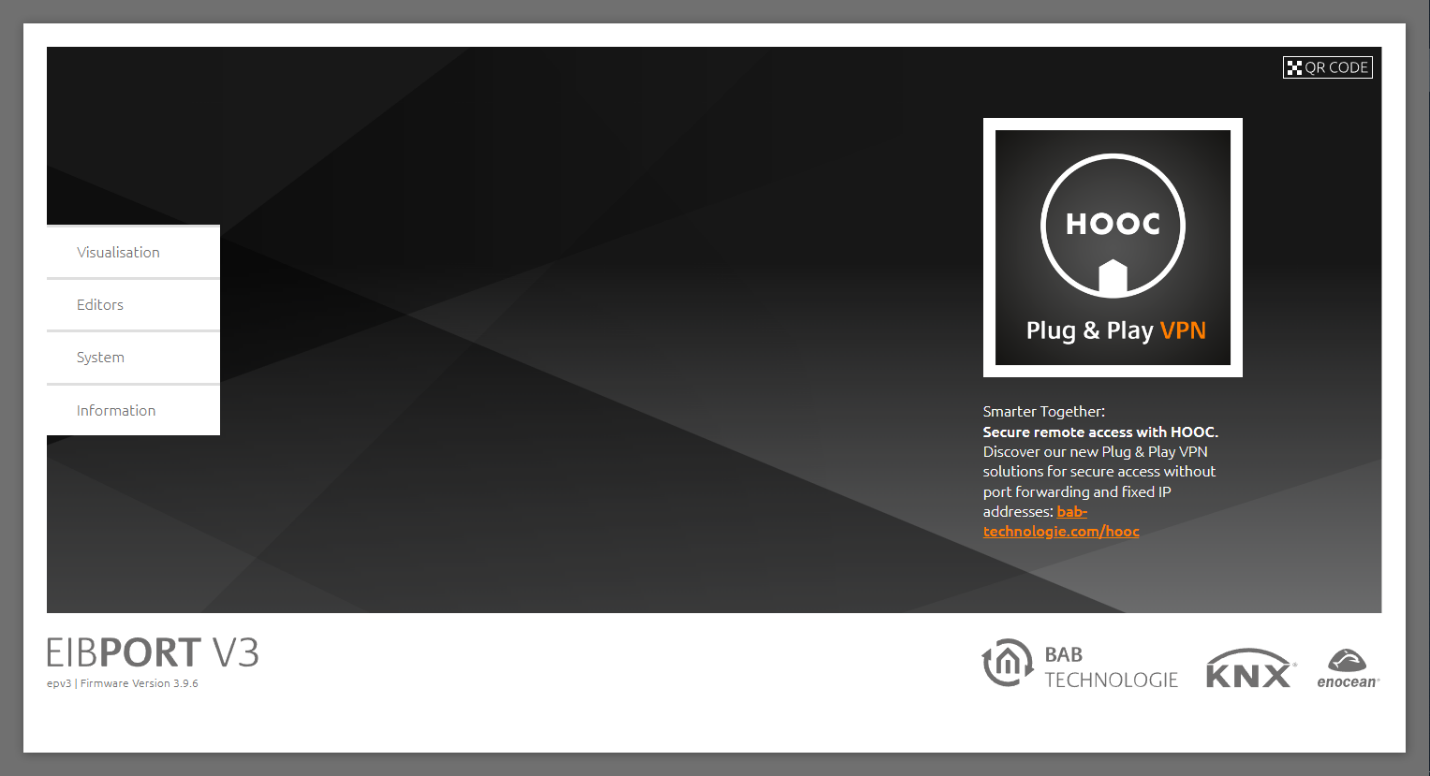

EIBPORT start page
The discovery tool serves for reading out address information even if the gateway is outside the network range. If the device is located within the same IP address range, it is displayed in green otherwise in yellow. If the EIBPORT is outside the PC’s IP range the IP Address must be changed. So, the PC and EIBPORT just differ within the last three digits.
The EIBPORT start page is shown by default when the IP address is entered in the browser. All other configuration windows can be reached from the start page. In “Start pages – Settings” under “System”, it is possible to change the display behaviour when the IP address is entered. If the start page does not appear when the IP address is entered, the start page can always be reached using the following URL:
http://192.168.1.222/bmxJava2/default.php
Clarification of the start page menu:

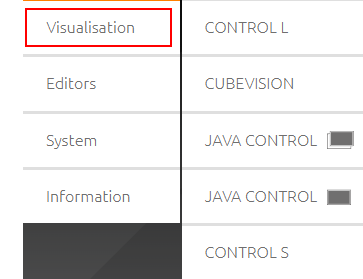

Visualisation:
JAVA CONTROL, CUBEVISION, CONTROL L visualisation, CONTROL S can be reached here
-

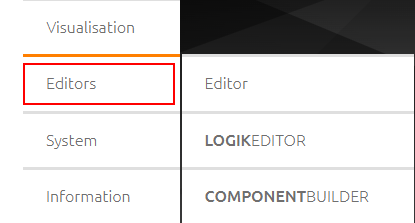

Editors:
-
Editor to open Fehler! Verweisquelle konnte nicht gefunden werden.(JAVA CONTROL, CONTROL L), CUBEVISION Editor (see “CUBEVISION documentation”), CONTROL S and EIBPORT Jobs (Jobs)
-
LOGIKEDITOR (see LOGIK EDITOR): Editor for logic elements
-
COMPONENTBUILDER an integrated software for creating individual visualisation elements. There is separate documentation for this.
-
-

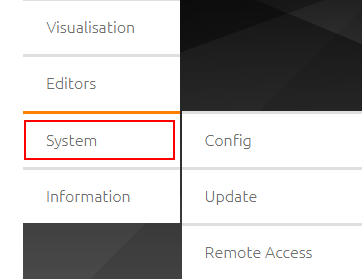

System:
-
Config: opens the ConfigTool for configuration of the system settings
-
Update: opens the web update interface (“Update via the integrated web interface”)
-
Remote Access: opens the login of the integrated EIBPORT HOOC Gateway Manager. There is separate documentation for setting up and using the EIBPORT HOOC Gateway Manager.
-
-

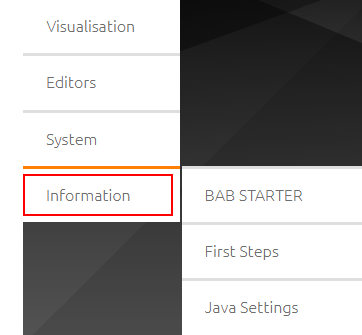

Information:
-
Download of BAB STARTER
-
First Steps - quick guide
-
Description for setting up the Java machine.
-
The following levels are Java-based and are achieved with BAB STARTER (“Commissioning using BAB STARTER”):
-
JAVA CONTROL
-
Editor
-
SYSTEM > CONFIG (“ConfigTool”)
Passwords
Access to editor, LOGIK EDITOR and system is protected with the following authentication as standard:
|
Area: |
Username: |
Password: |
|
Editor |
admin |
eibPort |
|
LOGIK EDITOR |
admin |
eibPort |
|
System (“Config” & “Update”) |
admin |
eibPort |
Note: when logging on for the first time, you will be asked to change the password. Please make a careful note of it.
Authentication is not activated as standard for the visualisations. Please switch to Editor – Visualisation Editor – Security settings (“Password protection for visualisation”) to configure this here.
Note: A minimum length of 8 characters is required for the password, i.e., empty, or insecure passwords are not allowed.
Basic settings
The following settings in "System" are important for the initial commissioning.
Note: Changing the settings requires that you save your adjustments; it may also be necessary to restart the system so that these settings (e.g., NTP server) also take effect.
Network settings (IP address / default gateway / DNS server / NTP time server)
You can access the network settings via "System" > "Configuration" > "Network settings".
KNX addressing (physical address for KNX / individual address for KNXnet/IP tunnelling)

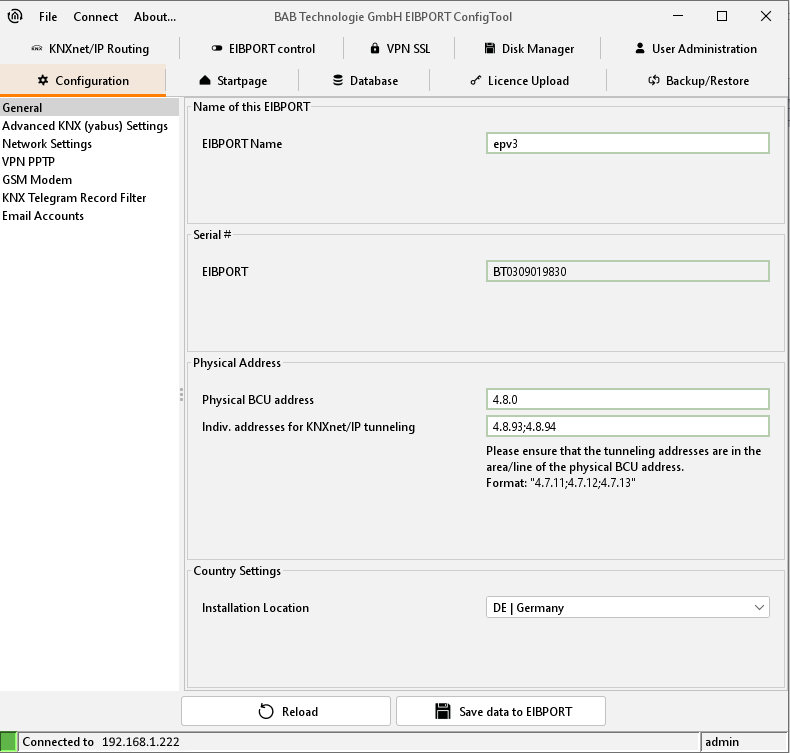

The physical address is not programmed using the ETS but using the menu items "System" > "Configuration" > "General". The "individual address for KNXnet/IP tunnelling" serves for using KNXnet/IP tunnelling connections. Also refer to chapters "System" or "ETS".
Installation Location
The installation Location setting under "System" > "Configuration" > "General" is important for the time zone.
Access via HTTPS
The EIBPORT web server supports encrypted access via HTTPS. To do this, use the https:// protocol instead of http://. Example: EIBPORT homepage:
https://192.168.1.222/bmxJava2/default.php
The first time you visit the site, your web browser will usually display an SSL/certificate warning. This is because EIBPORT uses a self-signed certificate. Such certificates cannot be verified by a public certification authority and are therefore initially classified by browsers as untrusted.
To continue accessing the site, open the advanced details of the warning message (e.g. ‘Advanced’) and confirm the exception (e.g. ‘Continue to …’ or ‘Accept risk and continue’). The exact wording may vary depending on the browser.
The connection between the web browser and EIBPORT is then encrypted. The warning message simply indicates that the certificate does not originate from a public certification authority.
Only grant this exception if you are certain that you are connecting to your own EIBPORT.
The reason for this is that the certificate is issued by BAB TECHNOLOGIE itself and cannot therefore be verified by an official body.
These facts do not affect the security of the connection!
As the browser is required to highlight the certificate verification issues mentioned above (this could apply to any website you visit), it warns the user about this access. You can safely allow access!
///
